CrystalView Mini USB

CATx Extender - VGA/USB/Audio/Serial - 150'

  • Video resolution up to 1600 x 1200 at 100' (30m), 1280 x 1024 at 150' (45m)
  • Two video settings for configuration based on cable length
  • Supports USB 1.1 peripherals and has integrated 4-port USB hub
  • Optional stereo speakers, microphone, and serial extension
  • Dual-access feature allows access at both remote and local ends
  • Optional dual-head video feature

Typical Application

CrystalView Mini USB application

Overview

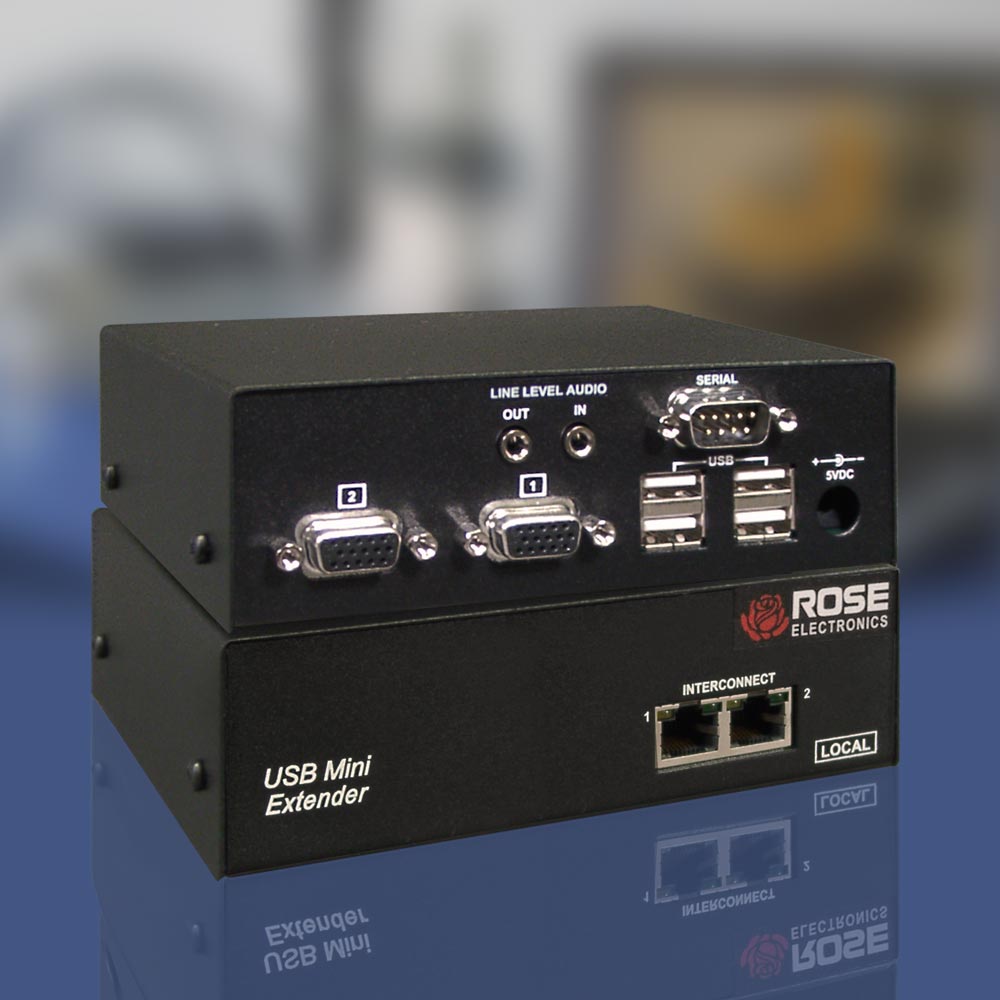

CrystalView Mini USB extender consists of two units, a local/transmitter unit, and a receiver/remote unit. The local unit connects to a CPU using a CPU adapter cable or a KVM switch. The Remote Unit connects directly to the keyboard, video monitor, and mouse cables of a KVM station using standard VGA, and USB rather than PS/2 ports. The local and remote units connect together with up to 150 feet of industry standard CATx cable.

CrystalView Mini uses a microprocessor to emulate the keyboard and mouse for plug-and-play configuration. The serial/audio models allow stereo audio to be transmitted in either direction across the CATx link simultaneously. Most serial devices, such as a touchscreen, can plug directly into the serial port on the remote unit. CrystalView Mini model uses state-of-the-art technology and is compact in size, making it an ideal solution when space is at a premium.

All CrystalView Mini models include dual access and are produced in four models:

  • Single-head video
  • Dual-head video
  • Single-head video with serial/audio
  • Dual-head video with serial/audio

Specifications

Dimensions (W x D x H) 5.9" x 4.3" x 1.7" (150 x 110 x 43 mm)
Weight 2.9 lbs (1.3 kgs)
Power Transmitter: Powered by computer USB
Receiver 100-240 VAC 50-60Hz, External adapter, +5V DC, 2A
4W
Distance VGA 1600 x 1200: 100' (30m)
VGA 1280 x 1024: 150' (45m)
Connectors Transmitter:
VGA video: HD15M
Other VGA video: HD15F
Keyboard/mouse: USB Type B
Dual access keyboard/mouse: Two USB type A
Link: RJ45 jack, one per video port
Audio: Two 3.5mm stereo jacks
Serial: DB9F
Receiver:
VGA video: HD15F
Other VGA video: HD15F
USB HID: 4 USB Type A
Link: RJ45 jack, one per video port
Audio: Two 3.5mm stereo jacks
Serial: DB9M
Power: Barrel jack
Controls Video adjustment: Two dip-switches on bottom of unit
Environment Operating temperature: 41°F–113°F (5°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–90%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-M2U1V CrystalView USB Mini, VGA USB Dual Access, Single-head Video KVM Extender Kit
CRK-M2U1V/AUD CrystalView USB Mini, VGA USB Dual Access, Single-head Video w/Serial & Audio KVM Extender Kit
CRK-M2U2V CrystalView USB Mini, VGA USB Dual Access, Dual-head Video KVM Extender Kit
CRK-M2U2V/AUD CrystalView USB Mini, VGA USB Dual Access, Dual-head Video w/ Serial & Audio KVM Extender Kit
Cables
CAB-USBABnnn Cable, USB Type A to Type B
CAB-CXVMFnnn UltraCable Hi-Res, Primary video - HD15M to HD15F
CAB-D9MFnnn Cable, Serial, DB9M to DB9F
CAB-SPMMnnn Cable, Stereo Audio, Mini-Phone M-M (3.5mm)
CAB-08UTPnnn Cable, UTP CAT5, RJ45MM
