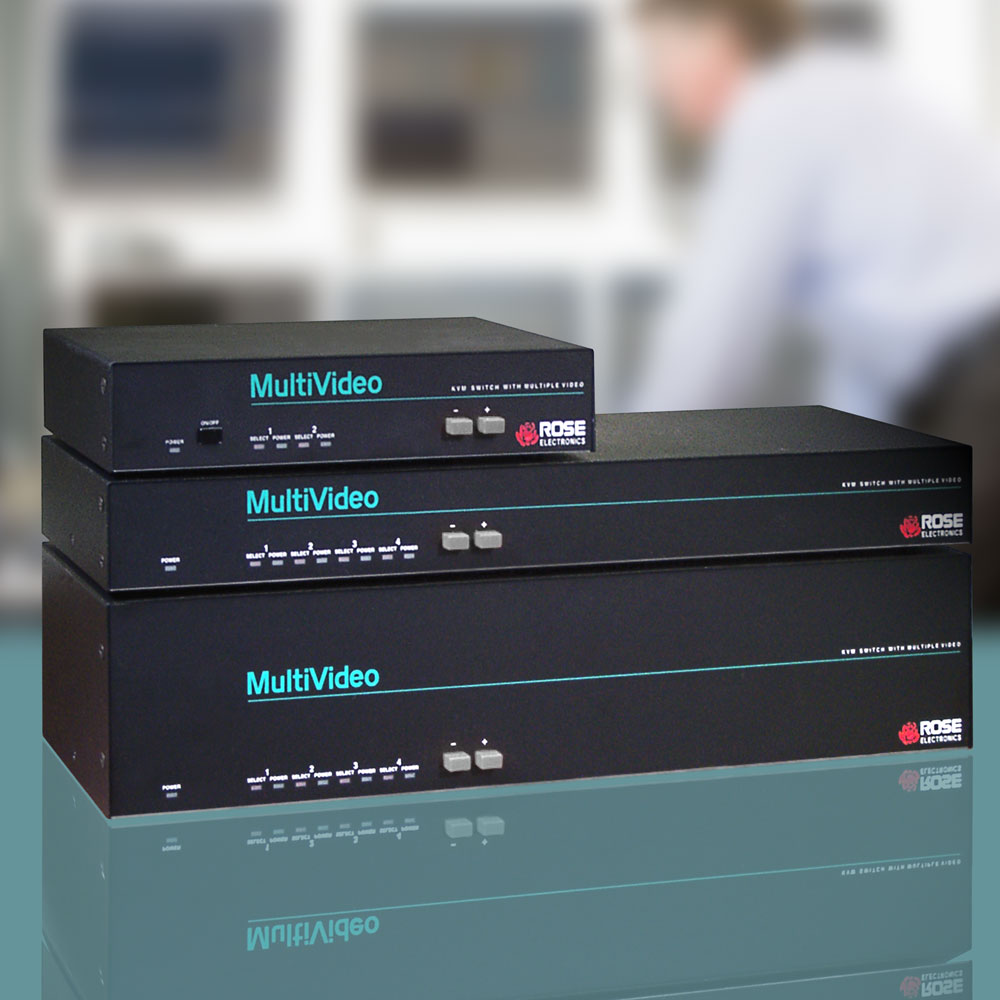

MultiVideo
Single-user kvm Switch - Multi-head VGA/USB/PS2
- Available in dual-head or quad-head
- PS/2 or USB keyboard and mouse
- Can be switched from front panel, hot-key, serial port, or OSD
- Optional audio and serial function
Typical Application
Overview
MultiVideo delivers keyboard command switching between different computers with multiple video signals. MultiVideo switch allows a user to view up to 4 video outputs per CPU at a resolution of 1600 x 1200. An optional on-screen display with a streamlined visual interface allows users to select which computer and video signal to view, and simplifies configuration and security. PC only and multi-platform models are available. The PC model supports only PS/2 and USB keyboards and mice, while the multi-platform will support PS/2, USB, Sun, and Apple keyboards and mice.
MultiVideo is offered in 5 different port configurations:
- 2 computers, each with 2 video ports
- 2 computers, each with 4 video ports
- 4 computers, each with 2 video ports
- 4 computers, each with 4 video ports
- 8 computers, each with 2 video ports
Units can be inter-connected to support a maximum of 64 computers. Serial touchscreen support is available on the multi-platform models.
Specifications ▼
| Dimensions (W x D x H) | M Chassis: 8.8" x 4.85" x 1.75" (223 x 123 x 44.5 mm) (1U) B chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) C chassis: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm) (2U) |
| Weight | M Chassis: 4 lbs (1.8 kgs) B chassis: 6 lbs (2.7 kgs) C chassis: 8 lbs (3.6 kgs) |
| Power | 90-240 VAC 50-60Hz M chassis: External adapter, +5V, 2A B/C-chassis: Internal M Chassis: 15W B chassis: 25W C chassis: 30W |
| Resolution | VGA: 1920 x 1200 |
| Distance | CPU/KVM: 25 feet (7.6m) |
| Connectors | Power: B/C chassis: IEC320, M-chassis: DIN5 CPU/KVM: DB25F RS232: RJ 6-conductor |
| Controls | Computer selection: OSD, front panel(option), hot-key, serial port Unit Power: Green LED CPU power: Green LED per port CPU select: Red LED per port Prev computer: Push-button - Next computer: Push-button + |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| MPM-2U2V | MultiVideo, 1x2 kvm Switch, Dual-head Video PC, 1U, M Chassis |
| MPB-4U2V | MultiVideo, 1x4 kvm Switch, Dual-head Video PC, 1U, B Chassis |
| MPC-2U4V | MultiVideo, 1x2 kvm Switch, Quad-head Video PC, 1U, C Chassis |
| MPC-4U4V | MultiVideo, 1x4 kvm Switch, Quad-head Video PC, 1U, C Chassis |
| MPC-8U2V | MultiVideo, 1x8 kvm Switch, Dual-head Video PC, 1U, C Chassis |
| MEM-2U2V | MultiVideo, 1x2 kvm Switch, Dual-head Video Multi-Platform, 1U, M Chassis |
| MEB-4U2V | MultiVideo, 1x4 kvm Switch, Dual-head Video Multi-Platform, 1U, B Chassis |
| MEC-2U4V | MultiVideo, 1x2 kvm Switch, Quad-head Video Multi-Platform, 1U, C Chassis |
| MEC-4U4V | MultiVideo, 1x4 kvm Switch, Quad-head Video Multi-Platform, 1U, C Chassis |
| MEC-8U2V | MultiVideo, 1x8 kvm Switch, Dual-head Video Multi-Platform, 1U, C Chassis |
| /OV suffix | On-screen display option |
