MultiVideo

Single-user kvm Switch - Multi-head VGA/USB/PS2

  • Available in dual-head or quad-head
  • PS/2 or USB keyboard and mouse
  • Can be switched from front panel, hot-key, serial port, or OSD
  • Optional audio and serial function

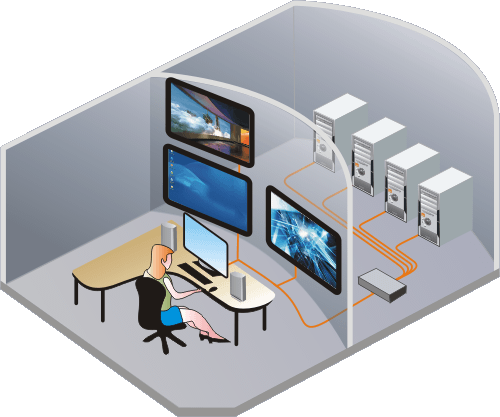

Typical Application

MultiVideo application

Overview

MultiVideo delivers keyboard command switching between different computers with multiple video signals. MultiVideo switch allows a user to view up to 4 video outputs per CPU at a resolution of 1600 x 1200. An optional on-screen display with a streamlined visual interface allows users to select which computer and video signal to view, and simplifies configuration and security. PC only and multi-platform models are available. The PC model supports only PS/2 and USB keyboards and mice, while the multi-platform will support PS/2, USB, Sun, and Apple keyboards and mice.

MultiVideo is offered in 5 different port configurations:

  • 2 computers, each with 2 video ports
  • 2 computers, each with 4 video ports
  • 4 computers, each with 2 video ports
  • 4 computers, each with 4 video ports
  • 8 computers, each with 2 video ports

Units can be inter-connected to support a maximum of 64 computers. Serial touchscreen support is available on the multi-platform models.

Specifications

Dimensions
(W x D x H)
M Chassis: 8.8" x 4.85" x 1.75" (223 x 123 x 44.5 mm) (1U)
B chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U)
C chassis: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm) (2U)
Weight M Chassis: 4 lbs (1.8 kgs)
B chassis: 6 lbs (2.7 kgs)
C chassis: 8 lbs (3.6 kgs)
Power 90-240 VAC 50-60Hz
M chassis: External adapter, +5V, 2A
B/C-chassis: Internal
M Chassis: 15W
B chassis: 25W
C chassis: 30W
Resolution VGA: 1920 x 1200
Distance CPU/KVM: 25 feet (7.6m)
Connectors Power: B/C chassis: IEC320, M-chassis: DIN5
CPU/KVM: DB25F
RS232: RJ 6-conductor
Controls Computer selection: OSD, front panel(option), hot-key, serial port
Unit Power: Green LED
CPU power: Green LED per port
CPU select: Red LED per port
Prev computer: Push-button -
Next computer: Push-button +
Environment Operating temperature: 32°F–113°F (0°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
MPM-2U2V MultiVideo, 1x2 kvm Switch, Dual-head Video PC, 1U, M Chassis
MPB-4U2V MultiVideo, 1x4 kvm Switch, Dual-head Video PC, 1U, B Chassis
MPC-2U4V MultiVideo, 1x2 kvm Switch, Quad-head Video PC, 1U, C Chassis
MPC-4U4V MultiVideo, 1x4 kvm Switch, Quad-head Video PC, 1U, C Chassis
MPC-8U2V MultiVideo, 1x8 kvm Switch, Dual-head Video PC, 1U, C Chassis
MEM-2U2V MultiVideo, 1x2 kvm Switch, Dual-head Video Multi-Platform, 1U, M Chassis
MEB-4U2V MultiVideo, 1x4 kvm Switch, Dual-head Video Multi-Platform, 1U, B Chassis
MEC-2U4V MultiVideo, 1x2 kvm Switch, Quad-head Video Multi-Platform, 1U, C Chassis
MEC-4U4V MultiVideo, 1x4 kvm Switch, Quad-head Video Multi-Platform, 1U, C Chassis
MEC-8U2V MultiVideo, 1x8 kvm Switch, Dual-head Video Multi-Platform, 1U, C Chassis
/OV suffix On-screen display option
