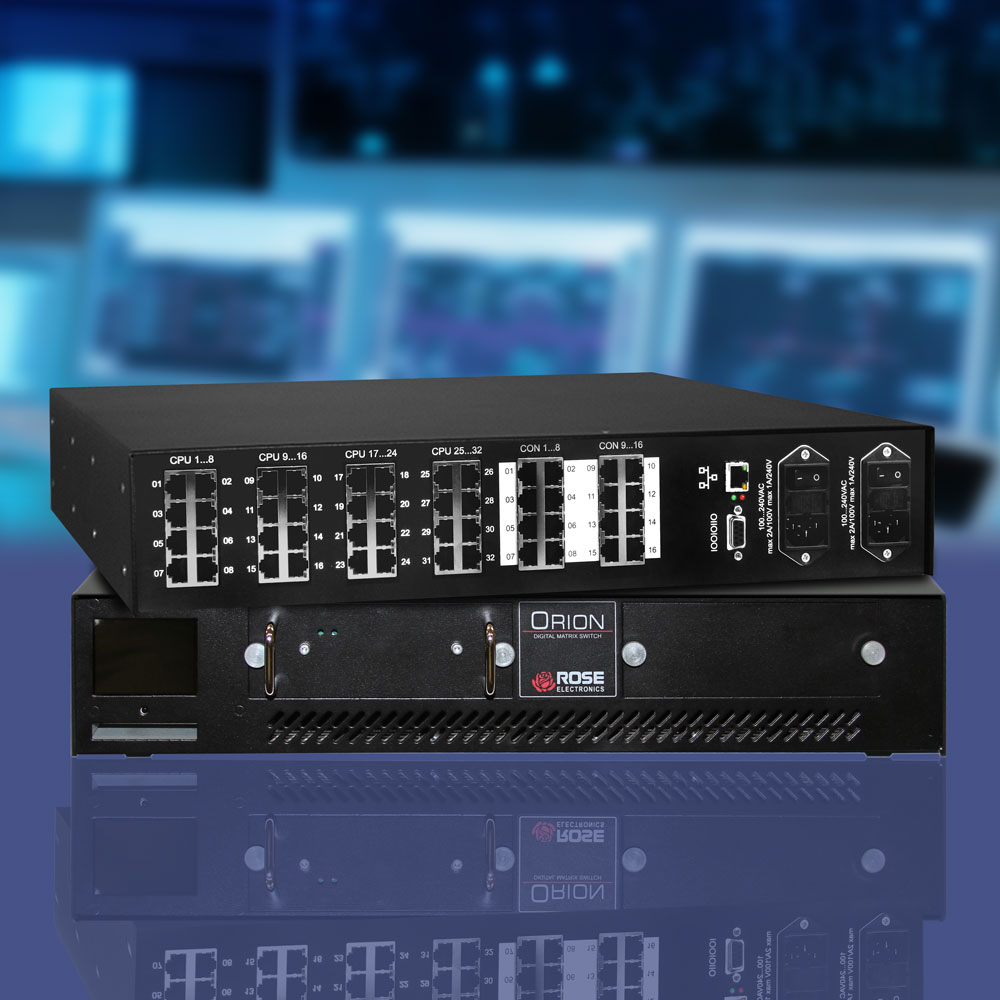

Orion
8-16 User kvm Switch - DVI - CATx or Fiber
- Non-blocking kvm matrix switch: 8-16 users to
8-32 computers - Extend computers and kvm stations over CATx or fiber cable
- Compressed video resolution up to 1920 x 1200
- Video can be configured to form dual-head or
quad-head switching groups - Access via on-screen display, serial, web-based GUI, or hotkey commands
- Optional USB 2.0, serial, and audio (speakers and microphone)
Typical Application
Overview
Orion is a flexible system consisting of three-components: transmitters at the video or computer source, a central switch, and receivers at the user station. The switch is available in several different models with CATx, fiber, or mixed interfaces and varying input and output port counts: 8x8, 8x16, 8x24, 8x32, 16x8, 16x16, 16x24, or 16x32. Its crosspoint configuration mode allows connection of any input to one or more outputs. Its kvm configuration mode allows the same, plus you can configure it for dual-head or quad-head operation. The kvm mode offers some other features such as partner or follow mode.
In kvm mode, you can switch:
- 16 user stations to 32 computers (single-head)
- 8 user stations to 16 computers (dual-head)
- 4 user stations to 8 computers (quad-head)
The transmitter and receiver extenders offer single, dual, or quad-head video, local access, serial/audio, and USB 2.0 options. Each video source connects to a transmitter and each video display connects to a receiver. Choose the specific transmitter and receiver model depending on the features that you desire. The extenders are capable of transmitting a video resolution of up to 1920 x 1200 at the following distances:
- Up to 33,000 feet (10Km) using single-mode fiber cable
- Up to 1,300 feet (400m) using multi-mode fiber cable
- Up to 460 feet (140m) using CATx cable
Orion units may be daisy chained as well, allowing the connection of other Orion units to the main unit to provide access to up to 1024 computers from the user stations. Configuration of these user stations and CPUs is made simple with the inclusion of an intuitive OSD which can be accessed from any USB connected kvm station.
Specifications ▼
Dimensions (W x D x H) | 19" x 17.7" x 3.35" (483 x 450 x 85 mm) (2U) |
Weight | 12.9 lbs (6 kgs) |
Power | 90-240VAC 47-63Hz 450W |
Resolution | DVI single-link: 1920 x 1200 |
Distance | CATx: 460' (140m) Multi-mode fiber (62.5µ): 650' (200m) Multi-mode fiber (50µ): 1,300' (400m) Multi-mode fiber: (50µ): OM3: 3,300' (1Km) Single-mode fiber (9µ): 33,000' ( 10Km) |
Connectors | Transmitters/receivers: Dual LC fiber or CATx Ethernet control port: RJ45 jack RS232 control port: DB9 female Power IEC:320 |
Controls | On-screen display (at each KVM station) Web, FTP, Telnet |
Environment | Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
CATx - 8 Users | |
---|---|
ORS-TP08x08 | Orion 8x8 Chassis, 8 Users, 8 CPU, kvm Switch, CATx |
ORS-TP08x16 | Orion 8x16 Chassis, 8 Users, 16 CPU, kvm Switch, CATx |
ORS-TP08x24 | Orion 8x24 Chassis, 8 Users, 24 CPU, kvm Switch, CATx |
ORS-TP08x32 | Orion 8x32 Chassis, 8 Users, 32 CPU, kvm Switch, CATx |
CATx - 16 Users | |
ORS-TP16x08 | Orion 16x8 Chassis, 16 Users, 8 CPU, kvm Switch, CATx |
ORS-TP16x16 | Orion 16x16 Chassis, 16 Users, 16 CPU, kvm Switch, CATx |
ORS-TP16x24 | Orion 16x24 Chassis, 16 Users, 24 CPU, kvm Switch, CATx |
ORS-TP16x32 | Orion 16x32 Chassis, 16 Users, 32 CPU, kvm Switch, CATx |
Multi-mode Fiber - 8 Users | |
ORS-FM08x08 | Orion 8x8 Chassis, 8 Users, 8 CPU, kvm Switch, Multi-mode Fiber |
ORS-FM08x16 | Orion 8x16 Chassis, 8 Users, 16 CPU, kvm Switch, Multi-mode Fiber |
ORS-FM08x24 | Orion 8x24 Chassis, 8 Users, 24 CPU, kvm Switch, Multi-mode Fiber |
ORS-FM08x32 | Orion 8x32 Chassis 8 Users, 32 CPU, kvm Switch, Multi-mode Fiber |
Multi-mode Fiber - 16 Users | |
ORS-FM16x08 | Orion 16x8 Chassis, 16 Users, 8 CPU, kvm Switch, Multi-mode Fiber |
ORS-FM16x16 | Orion 16x16 Chassis, 16 Users, 16 CPU, kvm Switch, Multi-mode Fiber |
ORS-FM16x24 | Orion 16x24 Chassis, 16 Users, 24 CPU, kvm Switch, Multi-mode Fiber |
ORS-FM16x32 | Orion 16x32 Chassis, 16 Users, 32 CPU, kvm Switch, Multi-mode Fiber |
Single-mode Fiber - 8 Users | |
ORS-FS08x08 | Orion 8x8 Chassis, 8 Users, 8 CPU, kvm Switch, Single-mode Fiber |
ORS-FS08x16 | Orion 8x16 Chassis, 8 Users, 16 CPU, kvm Switch, Single-mode Fiber |
ORS-FS08x24 | Orion 8x24 Chassis, 8 Users, 24 CPU, kvm Switch, Single-mode Fiber |
ORS-FS08x32 | Orion 8x32 Chassis, 8 Users, 32 CPU, kvm Switch, Single-mode Fiber |
Single-mode Fiber - 16 Users | |
ORS-FS16x08 | Orion 16x8 Chassis, 16 Users, 8 CPU, kvm Switch, Single-mode Fiber |
ORS-FS16x16 | Orion 16x16 Chassis, 16 Users, 16 CPU, kvm Switch, Single-mode Fiber |
ORS-FS16x24 | Orion 16x24 Chassis, 16 Users, 24 CPU, kvm Switch, Single-mode Fiber |
ORS-FS16x32 | Orion 16x32 Chassis, 16 Users, 32 CPU, kvm Switch, Single-mode Fiber |
Orion Transmitters - Video Only | |
ORT-DLDTX0D1D | Orion Transmitter, DVI Video only, CATx |
ORT-DLDFM0D1D | Orion Transmitter, DVI Video only, Fiber Multi-mode |
ORT-DLDFS0D1D | Orion Transmitter, DVI Video only, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Transmitters - Single-head | |
ORT-DLDTXUD1D | Orion Transmitter, kvm, DVI, USB, Single-Head, CATx |
ORT-DLDFMUD1D | Orion Transmitter, kvm, DVI, USB, Single-head, Fiber Multi-mode |
ORT-DLDFSUD1D | Orion Transmitter, kvm, DVI, USB, Single-head, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Transmitters - Dual-head | |
ORT-DLDTXUD2D | Orion Transmitter, kvm, DVI, USB 2.0 HID, Dual-head, CATx |
ORT-DLDFMUD2D | Orion Transmitter, kvm, DVI, USB, Dual-head, Fiber Multi-mode |
ORT-DLDFSUD2D | Orion Transmitter, kvm, DVI, USB, Dual-head, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Transmitters - USB 2.0 / Single-head | |
ORT-DLDTXTD1D | Orion Transmitter, kvm, DVI, USB 2.0, Single-Head, CATx |
ORT-DLDFMTD1D | Orion Transmitter, kvm, DVI, USB 2.0, Single-head, Fiber Multi-mode |
ORT-DLDFSTD1D | Orion Transmitter, kvm, DVI, USB 2.0, Single-head, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Transmitters - 4 x HID / Single-head | |
ORT-DLDTXH41D | Orion Transmitter, kvm, DVI, 4xHID, Single-Head, CATx |
ORT-DLDFMH41D | Orion Transmitter, kvm, DVI, 4xHID, Single-head, Fiber Multi-mode |
ORT-DLDFSH41D | Orion Transmitter, kvm, DVI, 4xHID, Single-head, Fiber Single-mode |
Orion Transmitters - 4 x HID / Dual-head | |
ORT-DLDTXH42D | Orion Transmitter, kvm, DVI, 4xHID, Dual-Head, CATx |
ORT-DLDFMH42D | Orion Transmitter, kvm, DVI, 4xHID, Dual-head, Fiber Multi-mode |
ORT-DLDFSH42D | Orion Transmitter, kvm, DVI, 4xHID, Dual-head, Fiber Single-mode |
Orion Receivers - Video Only | |
ORR-SRDTX0D1D | Orion Receiver, Video only, CATx |
ORR-SRDFM0D1D | Orion Receiver, Video only, Fiber Multi-mode |
ORR-SRDFS0D1D | Orion Receiver, Video only, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Receivers - Single-head | |
ORR-SRDTXUD1D | Orion Receiver, kvm, DVI, USB, Single-head, CATx |
ORR-SRDFMUD1D | Orion Receiver, kvm, DVI, USB, Single-head, Fiber Multi-mode |
ORR-SRDFSUD1D | Orion Receiver, kvm, DVI, USB, Single-head, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Receivers - Dual-head | |
ORR-SRDTXUD2D | Orion Receiver, kvm, DVI, USB, Dual-head, CATx |
ORR-SRDFMUD2D | Orion Receiver, kvm, DVI, USB, Dual-head, Fiber Multi-mode |
ORR-SRDFSUD2D | Orion Receiver, kvm, DVI, USB, Dual-head, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Receivers - USB 2.0 / Single-head | |
ORR-SRDTXTD1D | Orion Receiver, kvm, DVI, USB 2.0, Single-head, CATx |
ORR-SRDFMTD1D | Orion Receiver, kvm, DVI, USB 2.0, Single-head, Fiber Multi-mode |
ORR-SRDFSTD1D | Orion Receiver, kvm, DVI, USB 2.0, Single-head, Fiber Single-mode |
/AUD | Audio / Serial Option |
Orion Receivers - 4 x HID / Single-head | |
ORR-SRDTXH41D | Orion Receiver, kvm, DVI, 4xHID, Single-head, CATx |
ORR-SRDFMH41D | Orion Receiver, kvm, DVI, 4xHID, Single-head, Fiber Multi-mode |
ORR-SRDFSH41D | Orion Receiver, kvm, DVI, 4xHID, Single-head, Fiber Single-mode |
Orion Receivers - 4 x HID / Dual-head | |
ORR-SRDTXH42D | Orion Receiver, kvm, DVI, 4xHID, Dual-head, CATx |
ORR-SRDFMH42D | Orion Receiver, kvm, DVI, 4xHID, Dual-head, Fiber Multi-mode |
ORR-SRDFSH42D | Orion Receiver, kvm, DVI, 4xHID, Dual-head, Fiber Single-mode |
