Xtensys
1-16 User kvm Switch - VGA - CATx
- Connect multiple users to multiple computers using CATx cable
- Computer can be VGA with USB or PS/2 keyboard and mouse or a host with a serial port
- Can be switched from OSD, hot-key, or serial port
- Auto equalization and skew compensation for a perfect VGA display
- Wide range of models with varying port counts from 1x4 to 16x64

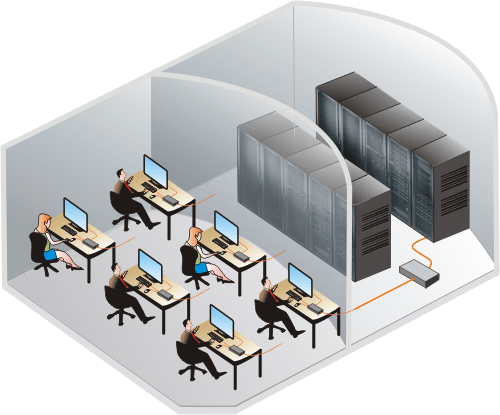

Typical Application
Overview
Xtensys universal console switch is a powerful and flexible switch that can be implemented and adapted to suit both simple and complex computing environments. The modular architecture makes any necessary cascading and expansion to accommodate more units simple and easy. Xtensys systems are designed to support CATx cabling and are comprised of three pieces: the switch, a micro transmitter, and a micro receiver. The system will automatically detect when the transmitters and receivers are connected, measure the distance of the CPU to the kvm user station, and adjust the video to obtain maximum clarity.
Xtensys supports VGA resolutions of up to 1920 x 1200 for up to 1000 feet and includes a local port for quick access with a nearby kvm station. Units vary in size and can come in the following range of combinations and sizes:
- 0, 2, 4, 8, 12, or 16 users and
- 4, 8, 16, 32, 48, or 64 CPUs
The switch allows users at a kvm station to access any computer connected to the system. The built-in OSD and hot-key systems make selecting and switching between computers easy with the use of a keyboard. The receiver will support connection of either a PS/2 or USB keyboard and mouse. For the ultimate in connection flexibility, the XTR-14 receiver permits a single kvm station to connect to a kvm port on four different Xtensys switches, four standalone servers/computers, or a combination of Xtensys switches and standalone servers/computers.
Specifications ▼
Dimensions (W x D x H) | Switch 1U: 17" x 6.75" x 1.75" (432 x 171 x 44.5 mm) (1U) Switch 2U: 17" x 6.75" x 3.5" (432 x 171 x 89 mm) (2U) User station: 9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U) Transmitter: 1.3" x 1.65" x 0.63" (33 x 42 x 16 mm) Video only receiver: 2.68" x 2.65" x 1" (68 x 67 x 25.4 mm) |
Weight | Switch 1U: 6 lbs (2.7 kgs) Switch 2U: 12 lbs (5.5 kgs) User station: 3 lbs (1.4 kgs) Transmitter: 0.15 lbs (0.07 kgs) Video only receiver: 0.15 lbs (0.07 kgs) |
Power | 100-240VAC 50-60Hz Switch: Internal User station: External adapter +5V Transmitter: Supplied by computer Video only receiver: External adpater +5V Switch 1U: 40W Switch 2U: 70W User station: 10W Transmitter: 5W Video only receiver: 5W |
Resolution | VGA: 1920x1200 |
Distance | Up to 1000' (300m) |
Connectors | Switch: Local VGA video: HD15F Local PS/2 keyboard/mouse: Two mini-din6 female Local USB keyboard/mouse: Two USB type A receptacles Link to transmitters and receivers: RJ45 Serial: RJ45 Power: IEC 320 receptacle Transmitter: VGA video: HD15M PS2 keyboard/mouse: Two cables with male mini-din6 plug USB keyboard/mouse: Cable with male USB Type A plug User Station: VGA video: HD15F PS/2 keyboard/mouse: Two mini-din6 female USB keyboard/mouse: Two USB type A receptacles Link: RJ45 jack Serial: RJ45 jack Power: Barrel jack Video only receiver: VGA video: HD15F PS2 keyboard/mouse: One PS/2 mini-din6F with included Y cable USB keyboard/mouse: Two USB Type A receptacle Power: Barrel jack |
Controls | Switch by OSD, hot-key, serial port Select, Status LEDS |
Environment | Operating temperature: 32°F–122°F (0°C–50°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
CATx kvm Switches - 1 User | |
---|---|
XTS-V0x04D1-L | 1x4 - 1 Local PS2 User, VGA, 4 CPU's |
XTS-V0x08D2-L | 1x8 - 1 Local PS2 User, VGA, 8 CPU's |
XTS-V0x16D4-L | 1x16 - 1 Local PS2 User, VGA, 16 CPU's |
XTS-V0x32D8-L | 1x32 - 1 Local PS2 User, VGA, 32 CPU's |
XTS-V0x48D12-L | 1x48 - 1 Local PS2 User, VGA, 48 CPU's |
XTS-V0x64D16-L | 1x64 - 1 Local PS2 User, VGA, 64 CPU's |
CATx kvm Switches - 2 Users | |
XTS-V2x04D2-L | 2x4 - 1 Local PS2 User, VGA, 2 Remote Users, 4 CPU's |
XTS-V2x08D2-L | 2x8 - 1 Local PS2 User, VGA, 2 Remote Users, 8 CPU's |
XTS-V2x16D4-L | 2x16 - 1 Local PS2 User, VGA, 2 Remote Users, 16 CPU's |
XTS-V2x32D8-L | 2x32 - 1 Local PS2 User, VGA, 2 Remote Users, 32 CPU's |
XTS-V2x48D12-L | 2x48 - 1 Local PS2 User, VGA, 2 Remote Users, 48 CPU's |
XTS-V2x64D16-L | 2x64 - 1 Local PS2 User, VGA, 2 Remote Users, 64 CPU's |
CATx kvm Switches - 4 Users | |
XTS-V4x08D4-L | 4x8 - 1 Local PS2 User, VGA, 4 Remote Users, 8 CPU's |
XTS-V4x16D4-L | 4x16 - 1 Local PS2 User, VGA, 4 Remote Users, 16 CPU's |
XTS-V4x32D8-L | 4x32 - 1 Local PS2 User, VGA, 4 Remote Users, 32 CPU's |
XTS-V4x48D12-L | 4x48 - 1 Local PS2 User, VGA, 4 Remote Users, 48 CPU's |
XTS-V4x64D16-L | 4x64 - 1 Local PS2 User, VGA, 4 Remote Users, 64 CPU's |
CATx kvm Switches - 8 Users | |
XTS-V8x16D8-L | 8x16 - 1 Local PS2 User, VGA, 8 Remote Users, 16 CPU's |
XTS-V8x32D8-L | 8x32 - 1 Local PS2 User, VGA, 8 Remote Users, 32 CPU's |
XTS-V8x48D12-L | 8x48 - 1 Local PS2 User, VGA, 8 Remote Users, 48 CPU's |
XTS-V8x64D16-L | 8x64 - 1 Local PS2 User, VGA, 8 Remote Users, 64 CPU's |
CATx kvm Switches - 12 Users | |
XTS-V12x16D12-L | 12x16 - 1 Local PS2 User, VGA, 12 Remote Users, 16 CPU's |
XTS-V12x32D12-L | 12x32 - 1 Local PS2 User, VGA, 12 Remote Users, 32 CPU's |
XTS-V12x48D12-L | 12x48 - 1 Local PS2 User, VGA, 12 Remote Users, 48 CPU's |
XTS-V12x64D16-L | 12x64 - 1 Local PS2 User, VGA, 12 Remote Users, 64 CPU's |
CATx kvm Switches - 16 Users | |
XTS-V16x16D16-L | 16x16 - 1 Local PS2 User, VGA, 16 Remote Users, 16 CPU's |
XTS-V16x32D16-L | 16x32 - 1 Local PS2 User, VGA, 16 Remote Users, 32 CPU's |
XTS-V16x48D16-L | 16x48 - 1 Local PS2 User, VGA, 16 Remote Users, 48 CPU's |
XTS-V16x64D16-L | 16x64 - 1 Local PS2 User, VGA, 16 Remote Users, 64 CPU's |
Local Ports | |
-L | Local PS/2 Port |
-LU | Local Port with PS/2 & USB |
Remoter User Stations | |
XTR-11 | CATx, VGA, PS2 Keyboard & Mouse, 1 RJ45 Connection |
XTR-11-U | CATx, VGA, USB/PS2 Keyboard & Mouse, 1 RJ45 Connection |
XTR-14 | CATx, VGA, PS2 Keyboard & Mouse, 4 RJ45 Connections |
XTR-14-U | CATx, VGA, USB/PS2 Keyboard & Mouse, 1 RJ45 Connection |
XTR-MP | CATx, VGA, Video only, 1 RJ45 Connection, Power via PS/2 port |
XTR-MU | CATx, VGA, Video only, 1 RJ45 Connection, Power via USB port |
CATx Tramsmitters | |
XTT-MP | CATx, VGA, PS2 Keyboard & Mouse, 1 RJ45 Connection |
XTT-MU | CATx, VGA, USB Keyboard & Mouse, 1 RJ45 Connection |
XTT-MPU | CATx, VGA, USB/PS2 Keyboard & Mouse, 1 RJ45 Connection |
XTT-MP2 | CATx, VGA, PS2 Keyboard & Mouse, 2 RJ45 Connections |
XTT-MU2-2 | CATx, VGA, USB Keyboard & Mouse, 2 RJ45 Connections |
XTT-MN | CATx, VGA Video only. 1 RJ45 Connection |
Xtensys Serial Cables | |
CAB-XTS-DB9F001 | CPU to PC w/DB9 serial port |
CAB-XTS-DB9F005 | CPU to PC w/DB9 serial port |
CAB-XTS-RJ45005 | CPU to Cisco/Sun w/RJ serial port |
CAB-XTS-RJ45010 | CPU to Cisco/Sun w/RJ serial port |
Xtensys Daisy-Chain Cable | |
CAB-04RJUMX005 | Allows switch to control 1-3 additional switches for dual to quad video |
