Orion

8-16 User kvm Switch - DVI - CATx or Fiber

Orion picture
◀ Prev Next ▶ Guide Data
Sheet
Manual
  • Non-blocking kvm matrix switch: 8-16 users to
    8-32 computers
  • Extend computers and kvm stations over CATx or fiber cable
  • Compressed video resolution up to 1920 x 1200
  • Video can be configured to form dual-head or
    quad-head switching groups
  • Access via on-screen display, serial, web-based GUI, or hotkey commands
  • Optional USB 2.0, serial, and audio (speakers and microphone)

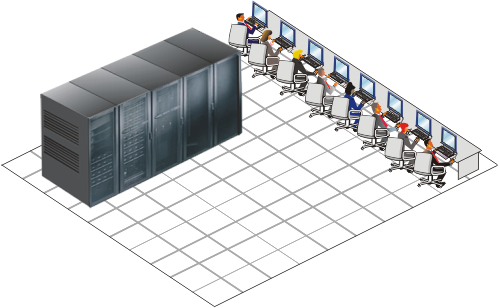

Typical Application

Orion application

Overview

Orion is a flexible system consisting of three-components: transmitters at the video or computer source, a central switch, and receivers at the user station. The switch is available in several different models with CATx, fiber, or mixed interfaces and varying input and output port counts: 8x8, 8x16, 8x24, 8x32, 16x8, 16x16, 16x24, or 16x32. Its crosspoint configuration mode allows connection of any input to one or more outputs. Its kvm configuration mode allows the same, plus you can configure it for dual-head or quad-head operation. The kvm mode offers some other features such as partner or follow mode.

In kvm mode, you can switch:

  • 16 user stations to 32 computers (single-head)
  • 8 user stations to 16 computers (dual-head)
  • 4 user stations to 8 computers (quad-head)

The transmitter and receiver extenders offer single, dual, or quad-head video, local access, serial/audio, and USB 2.0 options. Each video source connects to a transmitter and each video display connects to a receiver. Choose the specific transmitter and receiver model depending on the features that you desire. The extenders are capable of transmitting a video resolution of up to 1920 x 1200 at the following distances:

  • Up to 33,000 feet (10Km) using single-mode fiber cable
  • Up to 1,300 feet (400m) using multi-mode fiber cable
  • Up to 460 feet (140m) using CATx cable

Orion units may be daisy chained as well, allowing the connection of other Orion units to the main unit to provide access to up to 1024 computers from the user stations. Configuration of these user stations and CPUs is made simple with the inclusion of an intuitive OSD which can be accessed from any USB connected kvm station.

Specifications

Dimensions (W x D x H) 19" x 17.7" x 3.35" (483 x 450 x 85 mm) (2U)
Weight 12.9 lbs (6 kgs)
Power 90-240VAC 47-63Hz
450W
Resolution DVI single-link: 1920 x 1200
Distance CATx: 460' (140m)
Multi-mode fiber (62.5µ): 650' (200m)
Multi-mode fiber (50µ): 1,300' (400m)
Multi-mode fiber: (50µ): OM3: 3,300' (1Km)
Single-mode fiber (9µ): 33,000' ( 10Km)
Connectors Transmitters/receivers: Dual LC fiber or CATx
Ethernet control port: RJ45 jack
RS232 control port: DB9 female
Power IEC:320
Controls On-screen display (at each KVM station)
Web, FTP, Telnet
Environment Operating temperature: 41°F–113°F (5°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 0%–80%, non-condensing

Part numbers

CATx - 8 Users
ORS-TP08x08Orion 8x8 Chassis, 8 Users, 8 CPU, kvm Switch, CATx
ORS-TP08x16Orion 8x16 Chassis, 8 Users, 16 CPU, kvm Switch, CATx
ORS-TP08x24Orion 8x24 Chassis, 8 Users, 24 CPU, kvm Switch, CATx
ORS-TP08x32Orion 8x32 Chassis, 8 Users, 32 CPU, kvm Switch, CATx
CATx - 16 Users
ORS-TP16x08Orion 16x8 Chassis, 16 Users, 8 CPU, kvm Switch, CATx
ORS-TP16x16Orion 16x16 Chassis, 16 Users, 16 CPU, kvm Switch, CATx
ORS-TP16x24Orion 16x24 Chassis, 16 Users, 24 CPU, kvm Switch, CATx
ORS-TP16x32Orion 16x32 Chassis, 16 Users, 32 CPU, kvm Switch, CATx
Multi-mode Fiber - 8 Users
ORS-FM08x08Orion 8x8 Chassis, 8 Users, 8 CPU, kvm Switch, Multi-mode Fiber
ORS-FM08x16Orion 8x16 Chassis, 8 Users, 16 CPU, kvm Switch, Multi-mode Fiber
ORS-FM08x24Orion 8x24 Chassis, 8 Users, 24 CPU, kvm Switch, Multi-mode Fiber
ORS-FM08x32Orion 8x32 Chassis 8 Users, 32 CPU, kvm Switch, Multi-mode Fiber
Multi-mode Fiber - 16 Users
ORS-FM16x08Orion 16x8 Chassis, 16 Users, 8 CPU, kvm Switch, Multi-mode Fiber
ORS-FM16x16Orion 16x16 Chassis, 16 Users, 16 CPU, kvm Switch, Multi-mode Fiber
ORS-FM16x24Orion 16x24 Chassis, 16 Users, 24 CPU, kvm Switch, Multi-mode Fiber
ORS-FM16x32Orion 16x32 Chassis, 16 Users, 32 CPU, kvm Switch, Multi-mode Fiber
Single-mode Fiber - 8 Users
ORS-FS08x08Orion 8x8 Chassis, 8 Users, 8 CPU, kvm Switch, Single-mode Fiber
ORS-FS08x16Orion 8x16 Chassis, 8 Users, 16 CPU, kvm Switch, Single-mode Fiber
ORS-FS08x24Orion 8x24 Chassis, 8 Users, 24 CPU, kvm Switch, Single-mode Fiber
ORS-FS08x32Orion 8x32 Chassis, 8 Users, 32 CPU, kvm Switch, Single-mode Fiber
Single-mode Fiber - 16 Users
ORS-FS16x08Orion 16x8 Chassis, 16 Users, 8 CPU, kvm Switch, Single-mode Fiber
ORS-FS16x16Orion 16x16 Chassis, 16 Users, 16 CPU, kvm Switch, Single-mode Fiber
ORS-FS16x24Orion 16x24 Chassis, 16 Users, 24 CPU, kvm Switch, Single-mode Fiber
ORS-FS16x32Orion 16x32 Chassis, 16 Users, 32 CPU, kvm Switch, Single-mode Fiber
Orion Transmitters - Video Only
ORT-DLDTX0D1DOrion Transmitter, DVI Video only, CATx
ORT-DLDFM0D1DOrion Transmitter, DVI Video only, Fiber Multi-mode
ORT-DLDFS0D1DOrion Transmitter, DVI Video only, Fiber Single-mode
/AUDAudio / Serial Option
Orion Transmitters - Single-head
ORT-DLDTXUD1DOrion Transmitter, kvm, DVI, USB, Single-Head, CATx
ORT-DLDFMUD1DOrion Transmitter, kvm, DVI, USB, Single-head, Fiber Multi-mode
ORT-DLDFSUD1DOrion Transmitter, kvm, DVI, USB, Single-head, Fiber Single-mode
/AUDAudio / Serial Option
Orion Transmitters - Dual-head
ORT-DLDTXUD2DOrion Transmitter, kvm, DVI, USB 2.0 HID, Dual-head, CATx
ORT-DLDFMUD2DOrion Transmitter, kvm, DVI, USB, Dual-head, Fiber Multi-mode
ORT-DLDFSUD2DOrion Transmitter, kvm, DVI, USB, Dual-head, Fiber Single-mode
/AUDAudio / Serial Option
Orion Transmitters - USB 2.0 / Single-head
ORT-DLDTXTD1DOrion Transmitter, kvm, DVI, USB 2.0, Single-Head, CATx
ORT-DLDFMTD1DOrion Transmitter, kvm, DVI, USB 2.0, Single-head, Fiber Multi-mode
ORT-DLDFSTD1DOrion Transmitter, kvm, DVI, USB 2.0, Single-head, Fiber Single-mode
/AUDAudio / Serial Option
Orion Transmitters - 4 x HID / Single-head
ORT-DLDTXH41DOrion Transmitter, kvm, DVI, 4xHID, Single-Head, CATx
ORT-DLDFMH41DOrion Transmitter, kvm, DVI, 4xHID, Single-head, Fiber Multi-mode
ORT-DLDFSH41DOrion Transmitter, kvm, DVI, 4xHID, Single-head, Fiber Single-mode
Orion Transmitters - 4 x HID / Dual-head
ORT-DLDTXH42DOrion Transmitter, kvm, DVI, 4xHID, Dual-Head, CATx
ORT-DLDFMH42DOrion Transmitter, kvm, DVI, 4xHID, Dual-head, Fiber Multi-mode
ORT-DLDFSH42DOrion Transmitter, kvm, DVI, 4xHID, Dual-head, Fiber Single-mode
Orion Receivers - Video Only
ORR-SRDTX0D1DOrion Receiver, Video only, CATx
ORR-SRDFM0D1DOrion Receiver, Video only, Fiber Multi-mode
ORR-SRDFS0D1DOrion Receiver, Video only, Fiber Single-mode
/AUDAudio / Serial Option
Orion Receivers - Single-head
ORR-SRDTXUD1DOrion Receiver, kvm, DVI, USB, Single-head, CATx
ORR-SRDFMUD1DOrion Receiver, kvm, DVI, USB, Single-head, Fiber Multi-mode
ORR-SRDFSUD1DOrion Receiver, kvm, DVI, USB, Single-head, Fiber Single-mode
/AUDAudio / Serial Option
Orion Receivers - Dual-head
ORR-SRDTXUD2DOrion Receiver, kvm, DVI, USB, Dual-head, CATx
ORR-SRDFMUD2DOrion Receiver, kvm, DVI, USB, Dual-head, Fiber Multi-mode
ORR-SRDFSUD2DOrion Receiver, kvm, DVI, USB, Dual-head, Fiber Single-mode
/AUDAudio / Serial Option
Orion Receivers - USB 2.0 / Single-head
ORR-SRDTXTD1DOrion Receiver, kvm, DVI, USB 2.0, Single-head, CATx
ORR-SRDFMTD1DOrion Receiver, kvm, DVI, USB 2.0, Single-head, Fiber Multi-mode
ORR-SRDFSTD1DOrion Receiver, kvm, DVI, USB 2.0, Single-head, Fiber Single-mode
/AUDAudio / Serial Option
Orion Receivers - 4 x HID / Single-head
ORR-SRDTXH41DOrion Receiver, kvm, DVI, 4xHID, Single-head, CATx
ORR-SRDFMH41DOrion Receiver, kvm, DVI, 4xHID, Single-head, Fiber Multi-mode
ORR-SRDFSH41DOrion Receiver, kvm, DVI, 4xHID, Single-head, Fiber Single-mode
Orion Receivers - 4 x HID / Dual-head
ORR-SRDTXH42DOrion Receiver, kvm, DVI, 4xHID, Dual-head, CATx
ORR-SRDFMH42DOrion Receiver, kvm, DVI, 4xHID, Dual-head, Fiber Multi-mode
ORR-SRDFSH42DOrion Receiver, kvm, DVI, 4xHID, Dual-head, Fiber Single-mode
