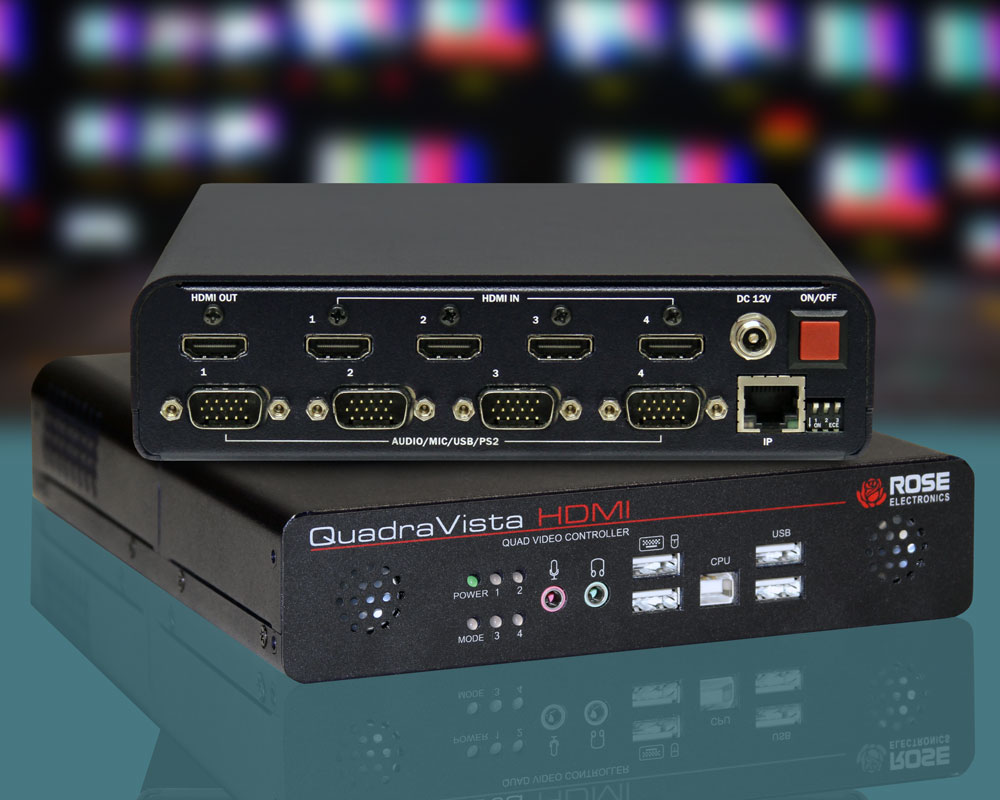

QuadraVista HDMI
Multiviewer - 4 HDMI Inputs
- Connect four DVI or HDMI sources with PS/2 or USB keyboard/mouse
- Display video sources in quad, PiP, full, or windowed mode with name of source
- Switch a USB 2.0 device, speaker, and microphone from any computer
- Can be controlled from keyboard, mouse, USB, serial port, touchscreen, or network
- Built-in stereo speakers, separate audio and microphone inputs
- Four USB 2.0 ports for printers, memory sticks, and other high speed devices
Typical Application
Overview
QuadraVista HDMI is a flexible and powerful multiviewer product with the capability to control and monitor up to four HDMI video sources on a single display. It can be accessed locally, by sending ASCII commands using HyperTerminal, or from a third party controller for control over IP.
QuadraVista HDMI provides simultaneous support for HDMI and DVI video with high quality resolutions up to 1920 x 1200. Features of QuadraVista HDMI include automatic sensing of the input signal, picture-in-picture, video loss detection, and automatic output monitor resolution detection, making it one of the most sophisticated multiviewers on the market. Each of the four individual displays is highly customizable, and can be resized, repositioned, swapped, or locked to the present window layout.
Supplementing the HD video and digital audio, the unit comes with four embedded stereo audio inputs and support for USB peripherals such as printers, cameras, and tertiary storage devices.
Specifications ▼
| Dimensions (W x D x H) | 6.9" x 10.3" x 1.75" (174 x 260 x 44.5 mm) |
| Weight | 2.8 lbs (1.3 kgs) |
| Power | 100-240 VAC 50-60Hz External adapter, +12V DC, 5A 60W |
| Resolution | HDMI: 1920 x 1200 |
| Distance | CPU/KVM: 25 feet (7.6m) |
| Connectors | Computer ports: HDMI video in: Four HDMI Type A USB/PS2/audio in: Four HD15 female Console port: HDMI video out: HDMI Type A Keyboard: USB Type A Mouse: USB Type A USB 2.0 devices: Two USB type A Microphone: 3.5mm jack Headphone: 3.5mm jack Other: Network: RJ45 USB control: USB type B Power: Locking barrel jack Dip switch: Firmware update and reset to defaule |
| Controls | Power: Green LED Remote status: Green/Yellow LED - Local/Remote Computer status: Per port Green/Yellow LED - Active/ Standby |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| QV-4kvmHDMI | QuadraVista, Quad Video kvm Switch, 1 kvm to 4 CPUs |
