UltraView Pro
Single-user kvm Switch with On-screen Display
- Analog video resolution up to 1920 x 1200
- User can connect up to 256 computers
- Optional audio and touch screen support
- Units can be linked together to form multi-head video and for expansion
- Switching can be done from front panel, serial port, hot-key, or OSD

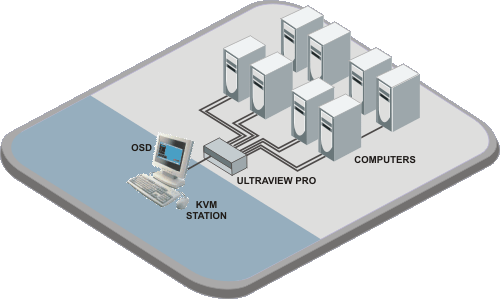

Typical Application
Overview
UltraView Pro is a single user kvm switch designed specifically for server management and can expand a system to incorporate a maximum of 256 computers. The switch supports video resolutions of up to 1600 x 1200 and can convert PC, UNIX, Sun, or Apple keyboard and mouse signals to any platform. Multi-platform models will also support audio, serial, and touchscreen. The unit is easy to install with a powerful OSD for configuration and computer selection. You can set-up the unit in advance so that you can install the unit without powering down servers and/or computers.
UltraView Pro comes in three chassis sizes:
- 2 or 4 port M Chassis
- 4 or 8 port B Chassis
- 4, 8, 12, or 16 port C Chassis
All models have the capacity to be chained to expand the number of ports.
Specifications ▼
| Dimensions (W x D x H) | M Chassis: 8.8" x 4.85" x 1.75" (223 x 123 x 44.5 mm) (1U) B chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) C chassis: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm) (2U) |
| Weight | M Chassis: 4 lbs (1.8 kgs) B chassis: 6 lbs (2.7 kgs) C chassis: 8 lbs (3.6 kgs) |
| Power | 90-240 VAC 50-60Hz M chassis: External adapter, +5V, 2A B/C-chassis: Internal M Chassis: 15W B chassis: 25W C chassis: 30W |
| Resolution | VGA: 1920 x 1200 |
| Distance | CPU/KVM: 25 feet (7.6m) |
| Connectors | Power: 8-16 port: IEC320, 4-port: DIN5 CPU/KVM: DB25F RS232: RJ 6-conductor |
| Controls | Computer selection: OSD, front panel, hot-key, serial port Unit Power: Green LED CPU power: Green LED per port CPU select: Red LED per port Prev computer: Push-button - Next computer: Push-button + |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| UPM-2UB | UltraView Pro, 1x2 kvm Switch, PC-UNIX, OSD, M Chassis 1U |
| UPM-4UB | UltraView Pro, 1x4 kvm Switch, PC-UNIX, OSD, M Chassis 1U |
| UPB-4UB | UltraView Pro, 1x4 kvm Switch, PC-UNIX, OSD, B Chassis 1U |
| UPB-8UB | UltraView Pro, 1x8 kvm Switch, PC-UNIX, OSD, B Chassis 1U |
| UPC-16UB | UltraView Pro, 1x16 kvm Switch, PC-UNIX, OSD, C Chassis 2U |
| UEM-2UB | UltraView Pro, 1x2 kvm Switch, Multi-Platform, OSD, M Chassis 1U |
| UEM-4UB | UltraView Pro, 1x4 kvm Switch, Multi-Platform, OSD, M Chassis 1U |
| UEB-4UB | UltraView Pro, 1x4 kvm Switch, Multi-Platform, OSD, B Chassis 1U |
| UEB-8UB | UltraView Pro, 1x8 kvm Switch, Multi-Platform, OSD, B Chassis 1U |
| UEC-16UB | UltraView Pro, 1x16 kvm Switch, Multi-Platform, OSD, C Chassis 2U |
| RM-UMxx | Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24") |
| RM-UBxx | Rack Mount kit, 1U, B Chassis (xx = 19", 23", or 24") |
| RM-UCxx | Rack mount kit, 2U, C Chassis (xx = 19", 23", or 24") |
| Cable Part Number | Description |
| CAB-ZX0606Cnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-ZX0606CAnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-CX0606Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CX0606CAnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-C1V060609Cnnn/S3 | Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Serial Touch Screen |
| CAB-CY0509Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-AT Keyboard + Serial Mouse |
| CAB-CXV0800Cnnn | UltraCable Hi-Res, Sun to Switch, DB25M to VGA-Sun Keyboard + Mouse |
| CAB-SCX0800Cnnn | UltraCable Hi-Res, Sun to Switch, DB25M to 13W3-Sun Keyboard + Mouse |
| CAB-CXUSBCnnn | UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse |
| CAB-CXUSBCAnnn | UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse-Stereo Audio |
| CAB-CXAV0400Cnnn | UltraCable Hi-Res, Apple to Switch, DB25M to DB15M-ADB Keyboard + Mouse |
| CAB-C1V0400Cnnn | UltraCable Hi-Res, Apple to Switch, DB25M to VGA-ADB Keyboard + Mouse |
| CAB-3W30606Cnnn | UltraCable Hi-Res, RS6000 to Switch, DB25M to 3W3M -PS/2 Keyboard + Mouse |
| CAB-R13W30606Cnnn | UltraCable Hi-Res, RS6000 to Switch, DB25M to 13W3M -PS/2 Keyboard + Mouse |
| CAB-S13W30606Cnnn | UltraCable Hi-Res, SGI to Switch, DB25M to 13W3M -PS/2 Keyboard + Mouse |
| CAB-ZX0606Mnnn | UltraCable, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-ZX0606MAnnn | UltraCable, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-CX0606Mnnn | UltraCable Hi-Res, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CX0606MAnnn | UltraCable Hi-Res, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-C1V060609Mnnn/S3 | Hi-Res, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse-Serial Touch Screen |
| CAB-CXV0800Mnnn | UltraCable Hi-Res, Switch to Sun kvm, DB25M to VGA-Sun Keyboard + Mouse |
| CAB-SBX0800Mnnn | UltraCable Hi-Res, Switch to Sun kvm, DB25M to 13W3F-Sun Keyboard + Mouse |
| CAB-CXVUSBMnnn | UltraCable Hi-Res, Switch to kvm, DB25M to VGA-USB Keyboard + Mouse |
| CAB-CXVUSBMAnnn | UltraCable Hi-Res, Switch to kvm, DB25M to VGA-USB Keyboard + Mouse-Stereo Audio |
| CAB-CXAV0400Mnnn | UltraCable Hi-Res, Switch to Apple kvm, DB25M to DB15F-ADB Keyboard + Mouse |
| CAB-C1V0400Mnnn | UltraCable Hi-Res, Switch to Apple kvm, DB25M to VGA-ADB Keyboard + Mouse |
| CAB-3W30606Mnnn | UltraCable Hi-Res, Switch to RS6000 kvm, DB25M to 3W3F-PS/2 Keyboard + Mouse |
| CAB-R13W30606Mnnn | UltraCable Hi-Res, Switch to RS6000 kvm, DB25M to 13W3F-PS/2 Keyboard + Mouse |
| CAB-S13W30606Mnnn | UltraCable Hi-Res, Switch to SGI kvm, DB25M to 13W3F-PS/2 Keyboard + Mouse |
| CAB-RGBHV0606Mnnn | UltraCable Hi-Res, Switch to RGB kvm, DB25M to RGBHV-PS/2 Keyboard + Mouse |
| CAB-CXVSMMnnn | UltraCable Hi-Res, Switch to Switch, DB25M to DB25M |
