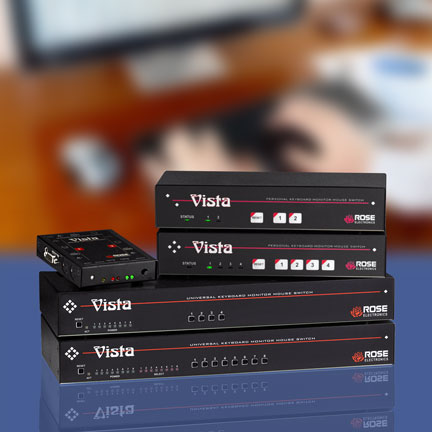

Vista PS/2
Low Cost Single-user kvm Switch - 1 x 2, 1 x 4, 1 x 8
- Easy to use and install
- Economical
- Video resolution up to 1920 x 1440
- Support PC, UNIX, USB, and audio
- DB25 or PC connectors
- Optional on-screen menu and audio support

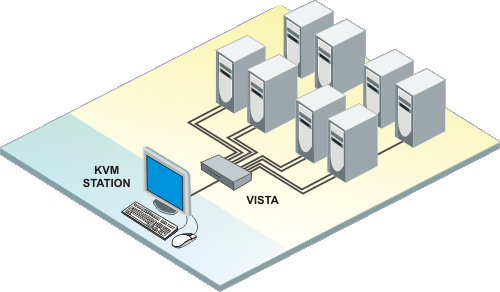

Typical Application
Overview
Vista PS/2 is a single user kvm switch ideal for use in small or home offices with the need for a single keyboard, monitor, and mouse to access two, four, or eight computers. The unit supports a high resolution up to 1920 x 1440. Designed for plug-and-play operation, Vista PS/2 is easy to configure and install.
Vista PS/2 switches are produced in three models:
- kvm-Series – 9" wide, rack mountable 2 and 4-port (1U) and supports both PC and Apple computers.
- KVL-Series – 13" wide, rack mountable 4 and 8-port (1U), expandable up to 64 computers
Vista PS/2 connectors can be ordered in 2 different styles:
- DB25 connectors, uses Rose UltraCable, Supports USB
- Standard PC connectors, uses direct one-to-one cables for keyboard, video, and mouse
Specifications ▼
| Dimensions (W x D x H) | M-Series: 8.8" x 3.4" x 1.75" (224 x 86 x 44.5 mm) (1U) L-Series: 13.3" x 4.8" x 1.75" (338 x 122 x 44.5 mm) (1U) |
| Weight | M-Series: 2 lbs (0.9 kgs) L-Series: 3 lbs (1.4 kgs) |
| Power | Supplied by computer M-Series: 3W L-Series: 5W |
| Resolution | VGA: 1920 x 1440 |
| Distance | CPU/KVM: 25 feet (7.6m) |
| Connectors | U-series: Video: VGA HD15 female PS/2 keyboard: MiniDin-6F+AW7 PS/2 mouse: MiniDin-6F PC-series: CPU/KVM ports: DB25 Female |
| Controls | Reset: push-button switch Activity: Yellow LED Computer power: Green LED per port Computer select: Red LED per port |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| kvm-2UPH | Vista, 1x2 kvm Switch, 1-kvm to 2-CPUs (DB25) |
| kvm-4UPH | Vista, 1x4 kvm Switch, 1-kvm to 4-CPUs (DB25) |
| kvm-2PCA | Vista, 1x2 kvm Switch, 1-kvm to 2-CPUs (VGA-PS/2-PS/2) |
| kvm-4PCA | Vista, 1x4 kvm Switch, 1-kvm to 4-CPUs (VGA-PS/2-PS/2) |
| kvm-2UPM | Vista, 1x2 Apple kvm Switch, 1-kvm to 2-MAC's (DB25) |
| kvm-4UPMH | Vista, 1x4 Apple kvm Switch, 1-kvm to 4-MAC's (DB25) |
| KVL-4UA | Vista, 1x4 kvm Switch, 1-kvm to 4-CPUs (DB25) |
| KVL-4UA/OV | Vista, 1x4 kvm Switch, 1-kvm to 4-CPUs (DB25) with OSD |
| KVL-8UA | Vista, 1x8 kvm Switch, 1-kvm to 8-CPUs (DB25) |
| KVL-8UA/OV | Vista, 1x8 kvm Switch, 1-kvm to 8-CPUs (DB25) with OSD |
| KVL-8PCA | Vista, 1x8 kvm Switch, 1-kvm to 8-CPUs (VGA-PS/2-PS/2) |
| KVL-8PCA/OV | Vista, 1x8 kvm Switch, 1-kvm to 8-CPUs (VGA-PS/2-PS/2) with OSD |
| RM-UMxx | Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24") |
| RM-ULxx | Rack Mount kit, 1U, L Chassis (xx = 19", 23", or 24") |
| /OV suffix | On-screen display option |
| Cable Part Number | Description |
| CAB-ZX0606Cnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-ZX0606CAnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-CX0606Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-C1Y0509Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-AT Keyboard + Serial Mouse |
| CAB-CXUSBCnnn | UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse |
| CAB-ZXV66MMnnn | UltraCable, PC to switch, VGA-PS/2 to VGA-PS/2 (M-M) |
| CAB-CXV66MMnnn | UltraCable Hi-Res, PC to switch, VGA-PS/2 to VGA-PS/2 (M-M) |
