CrystalView DVI Fiber
Fiber Extender - DVI/USB/PS2
- Extends DVI video keyboard/mouse up to 1,300' (400m) over multi-mode cable and 33,000' (10km) over single-mode cable
- Compressed video resolution up to 1920 x 1200
- PS/2 or USB keyboard/mouse
- Local port for dual access to computer at either side of extension
- Optional serial, stereo speakers, and microphone

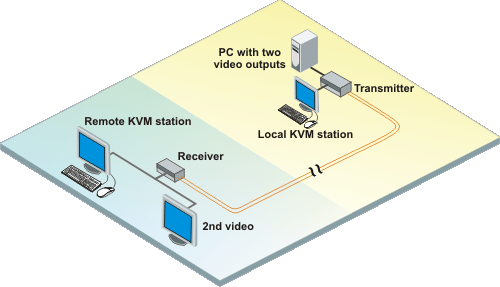

Typical Application
Overview
CrystalView DVI Fiber extends KVM stations with DVI resolution video of 1920 x 1200 up to 6 miles away over 9µ single-mode fiber, but will also support multi-mode fiber for shorter distance applications. A flexible professional solution for long distance transmission of KVM signals, CrystalView DVI fiber can support either USB or PS/2 connections, has an optional stereo audio upgrade, and is compatible across all operating systems.
The plug-and-play design ensures easy installation and operation with no adjustments required, and LED indicators are provided to monitor the system status and identify any possible errors. All units are equipped with a local access port for viewing and controlling the system near the transmitter. Single-head and dual-head video models are available, allowing for the connection of one or two monitors at the remote KVM station.
Specifications ▼
| Dimensions (W x D x H) | 4" x 5.6" x 1.65" (103 x 143 x 42 mm) |
| Weight | 1.3 lbs (0.6 kgs) |
| Power | 90-240 VAC 50-60Hz External adapter, +5V DC, 2A 5W |
| Resolution | DVI video: 1920 x 1200 |
| Distance | CATx: 460' (140m) Multi-mode fiber: (62.5µ): 650' (200m) Multi-mode fiber: (50µ): 1,300' (400m) Multi-mode fiber: (50µ) OM3: 3,300' (1km) Single-mode fiber: (9µ): 33,000' (10km) |
| Connectors | Transmitter: DVI video: DVI female USB keyboard/mouse: USB Type B PS/2 keyboard/mouse: Two PS/2 mini-din6F Audio: Two 3.5mm stereo jacks Serial: DB9F Link: RJ45 jack, one per video port Receiver: DVI video: DVI female USB keyboard/mouse: Two USB type A jack PS/2 keyboard/mouse: Two PS/2 mini-din6F Audio: Two 3.5mm stereo jacks Serial: DB9M Link: RJ45 jack, one per video port Power: Barrel jack |
| Controls | Unit power: Red LED Data error: Green LED Link status: Green LED Video status: Green LED |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-2DFMPD1D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, PS/2 |
| CRK-2DFMUD1D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, USB |
| CRK-2DFMPD2D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, PS/2 |
| CRK-2DFMUD2D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, USB |
| Single-mode Fiber Units | |
| CRK-2DFSPD1D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, PS/2 |
| CRK-2DFSUD1D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, USB |
| CRK-2DFSPD2D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, PS/2 |
| CRK-2DFSUD2D | CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, USB |
| Fiber DVI KVM Extenders with USB 2.0 | |
| CRK-2DFSTD1D | CrystalView DVI Fiber, Dual Access Digital Single-mode Fiber KVM Extender, Single-head Video, DVI, USB 2.0 |
| CRK-2DFMTD2D | CrystalView DVI Fiber, Dual Access Digital Multi-mode Fiber KVM Extender, Dual-head Video, DVI, USB 2.0 |
| CRK-2DFSTD2D | CrystalView DVI Fiber, Dual Access Digital Single-mode Fiber KVM Extender, Dual-head Video, DVI, USB 2.0 |
