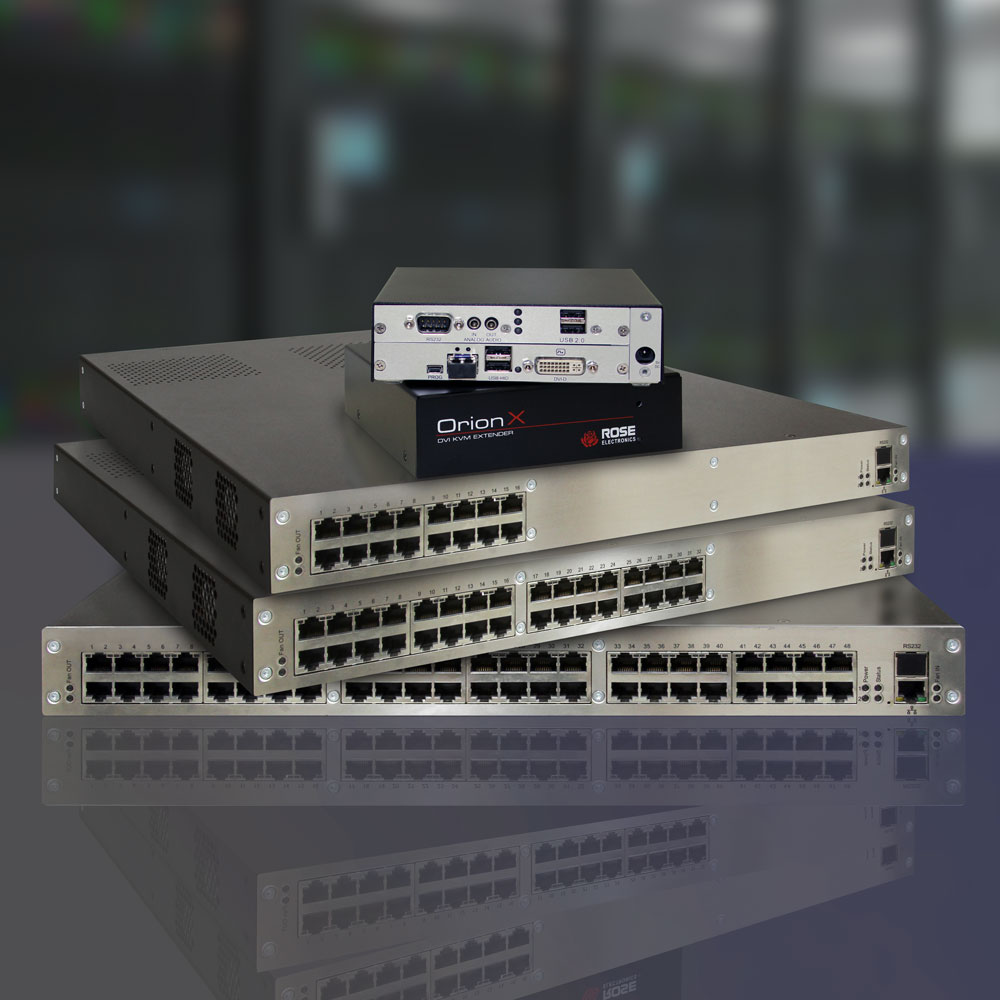

Orion XC
Compact kvm Switch - CATx or Fiber - 8-80 ports
- Compact version of Orion-X switch with fixed port configurations
- Available in six sizes: 8, 16, 32, 48, 64, and 80 ports in either all CATx or mixed CATx and fiber
- Extend computers and kvm stations to 460' (140m) on CATx cable, 33,000' (10km) on fiber
- Each switch port can be an input or output
- DVI video resolution up to 1920 x 1200
- Instant video switching
- Access via on-screen display, serial, web-based GUI, SNMP, or hotkey commands
- Options: VGA input, dual-link DVI, SD/HD/3G-SDI input, HDMI input/output, USB 2.0, analog or digital audio, serial, and redundant power
Typical Application
Overview
Orion XC is a fixed port version of the Orion X-series switches. This reduces the cost and makes the unit more compact. It also is a three-component system consisting of: transmitters at the video or computer source, a central switch, and receivers at the user station.
The ports in the Orion XC switch chassis are fixed and can be either all CATx ports or mixed fiber and CATx. The Orion XC is available in six models:
- 16 CATx ports in 1U
- 32 CATx ports in 1U
- 48 CATx ports in 1U
- 64 CATx ports in 2U
- 80 CATx ports in 2U
- 48 CATx ports and 16 fiber ports in 2U
- 48 CATx ports and 32 fiber ports in 2U
Each port of the switch is automatically configured to be an input or an output port depending on whether a transmitter or receiver unit is connected to it. This simplifies your system planning because you do not have to decide in advance, how many input or output ports – only the total number of ports.
Distances of the transmitters or receivers can be:
- Up to 33,000 feet (10Km) using single-mode fiber cable
- Up to 1,300 feet (400m) using multi-mode OM3 fiber cable
- Up to 460 feet (140m) using CATx cable
The product supports video resolutions up to 1920 x 1200 @ 60Hz and all DVI single-link resolutions. Video sources running at the same resolution can be switched instantly with no delay or blanking which makes it ideal for command centers, broadcast applications, financial institutions, and many more. The receivers include an intuitive OSD for easy use and configuration at each user station through the attached USB keyboard and mouse.
Other capabilities optionally available are:
- VGA input
- Dual-link DVI input/output
- SD/HD/3G-SDI input
- HDMI input/output
- Transparent USB 2.0
- RS232/RS422 serial interface
- Analog or digital audio
- Redundant power supply
- Rack mount kit (19")
To enhance the functionality of the product software utilities are available to provide additional features that are useful in an enterprise environment.
- 1. JAVA Tool, Extended Switching and Presets
- 2: #1 plus additional API
- 3. SNMP and Syslog for unit monitoring
- 4. Cascading / Stacking
- 5. Multi-Screen Control
Specifications ▼
| Dimensions (W x D x H) | 80-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U) 64-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U) 48-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 32-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 16-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 8-port: 8.7" x 5.7" x 1.75" (220 x 146 x 44.5 mm) (1U) |
| Weight | 80-port: 15.9 lbs (7.2 kgs) 64-port: 15.9 lbs (7.2 kgs) 48-port: 9 lbs (4.1 kgs) 32-port: 8.8 lbs (4 kgs) 16-port: 8.6 lbs (3.9 kgs) 8-port: 1.9 lbs (0.9 kgs) |
| Power | 90-240 VAC 50-60 Hz Optional redundant PSU 80-port: 125W 64-port: 115W 48-port: 90W 32-port: 65W 16-port: 40W 8-port: 13W |
| Resolution | DVI single-link video: 1920 x 1200/2048 x 1152 DVI dual-link video: 2560 x 2048 VGA video: 1920 x 1200 HDMI video: 1920 x 1200 SDI: per SMPTE spec up to 3G |
| Distance | CATx: 460' (140m) Multi-mode fiber: (62.5µ): 650' (200m) Multi-mode fiber: (50µ): 1,300' (400m) Multi-mode fiber: (50µ) OM3: 3,300' (1km) Single-mode fiber: (9µ): 33,000' (10km) |
| Connectors | Transmitters/receivers: Dual LC fiber or CATx SD/HD/3G-SDI:Mini coax replaces fiber SFP Ethernet control port: RJ45 jack RS232 control port: RJ45 jack Power: IEC-320 receptacle |
| Controls | On-screen display (at each KVM station) Web, FTP, Telnet, SMTP, Serial, IR |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
| Orion XC Switches | |
|---|---|
| OXS-XC48C32F | 80 Ports, Redundant PSU, 48x CATx + 32x Fiber, 2U |
| OXS-XC48C16F | 64 Ports, Redundant PSU, 48x CATx + 16x Fiber, 2U |
| OXS-XC080C | Orion XC, 80 Ports, Redundant PSU, CATx, 2U |
| OXS-XC064C | Orion XC, 64 Ports, Redundant PSU, CATx, 2U |
| OXS-XC048C | Orion XC, 48 Ports, Redundant PSU, CATx, 1U |
| OXS-XC032C | Orion XC, 32 Ports, Redundant PSU, CATx, 1U |
| OXS-XC016C | Orion XC, 16 Ports, Redundant PSU, CATx, 1U |
| OXS-XC008C | Orion XC, 8 Ports, Redundant PSU, CATx, 1U |
| Orion-X software utilities | |
| SW-OXS-XC-JT | Option 1: JAVA Tool + Extended Switching + Presets |
| SW-OXS-XC-JT+API | Option 2: Bundle 1 + API |
| SW-OXS-XC-SNMP+SL | Option 3: SNMP & SYSLOG |
| SW-OXS-XC-STACK | Option 4: Cascading / stacking |
| SW-OXS-XC-MSC | Option 5: Multi-Screen Control |
| Orion X Receivers – CATx | |
| OR2-SRDTXUD1D | DVI-D, USB HID |
| OR2-SRDTXTD1D | DVI-D, USB HID, USB 2.0 |
| OR2-SRDTXUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OR4-SRDTXTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| OR4-SRDTXTD2D/AUD | Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial |
| Orion X Receivers – Multi-mode Fiber | |
| OR2-SRDFMUD1D | DVI-D, USB HID |
| OR2-SRDFMTD1D | DVI-D, USB HID, USB 2.0 |
| OR2-SRDFMUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OR4-SRDFMTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| Orion X Receivers – Single-mode Fiber | |
| OR2-SRDFSUD1D | DVI-D, USB HID |
| OR2-SRDFSTD1D | DVI-D, USB HID, USB 2.0 |
| OR2-SRDFSUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OR4-SRDFSTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| Orion X Transmitters – CATx | |
| OT2-SLDTXUD1D | DVI-D, USB HID |
| OT2-SLDTXUD1V | DVI-I (VGA), USB HID |
| OT2-SLDTXTD1D | DVI-D, USB HID, USB 2.0 |
| OT4-SLDTXTD1V | DVI-I (VGA), USB USB 2.0, HID |
| OT2-SLDTXUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OT4-SLDTXUD1V/AUD | DVI-I (VGA), USB HID, Audio, Serial |
| OT4-SLDTXTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| OT4-SLDTXTD2D/AUD | Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial |
| OT4-SLDTXTD1V/AUD | DVI-I (VGA), USB USB 2.0, HID, Audio, Serial |
| Orion X Transmitters – Multi-mode Fiber | |
| OT2-SLDFMUD1D | DVI-D, USB HID |
| OT2-SLDFMUD1V | DVI-I (VGA), USB HID |
| OT2-SLDFMTD1D | DVI-D, USB HID, USB 2.0 |
| OT4-SLDFMTD1V | DVI-I (VGA), USB HID, USB 2.0 |
| OT2-SLDFMUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OT4-SLDFMUD1V/AUD | DVI-I (VGA), USB HID, Audio, Serial |
| OT4-SLDFMTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| OT4-SLDFMTD1V/AUD | DVI-I (VGA), USB HID, USB 2.0, Audio, Serial |
| Orion X Transmitters – Single-mode Fiber | |
| OT2-SLDFSUD1D | DVI-D, USB HID |
| OT2-SLDFSUD1V | DVI-I (VGA), USB HID |
| OT2-SLDFSTD1D | DVI-D, USB HID, USB 2.0 |
| OT4-SLDFSTD1V | DVI-I (VGA), USB HID, USB 2.0 |
| OT2-SLDFSUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OT4-SLDFSUD1V/AUD | DVI-I (VGA), USB HID, Audio, Serial |
| OT4-SLDFSTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| OT4-SLDFSTD1V/AUD | DVI-I (VGA), USB HID, USB 2.0, Audio, Serial |
