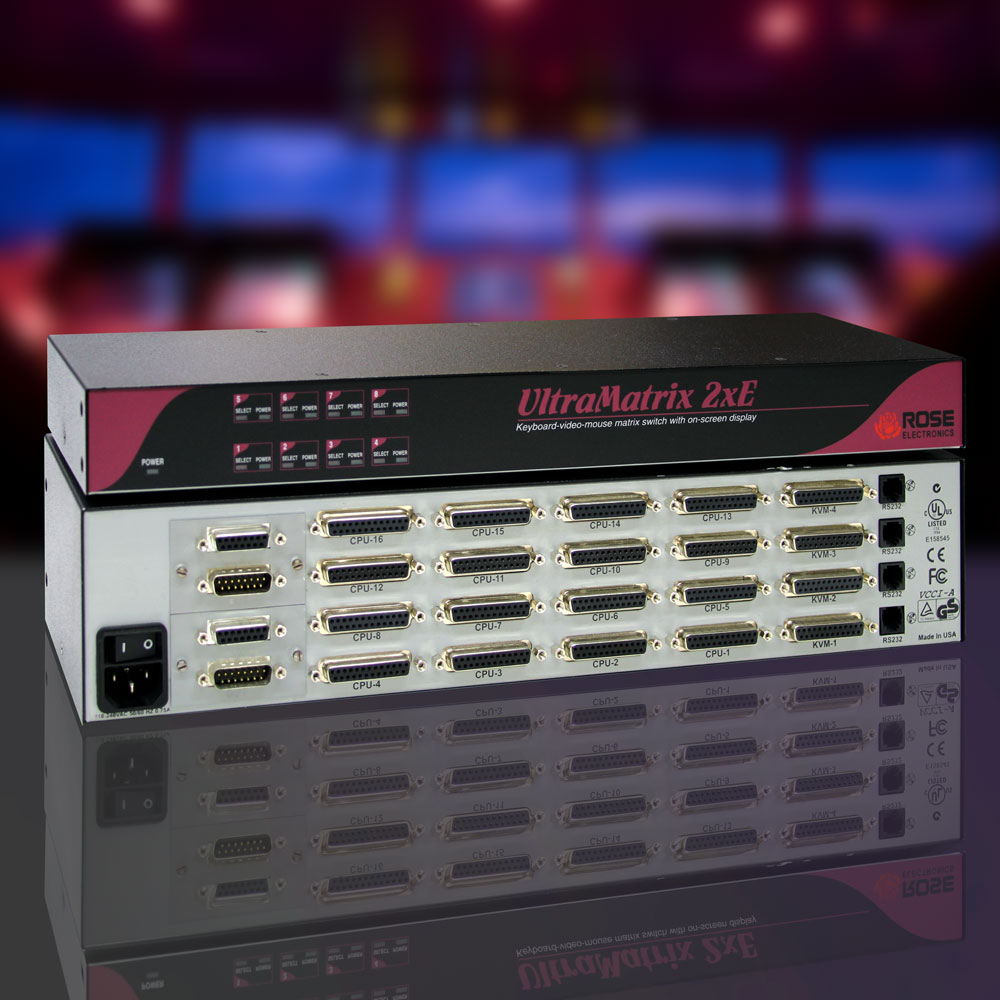

UltraMatrix E-series
2-4 User kvm Switch - VGA
- VGA up to 1920 x 1200 and PS/2 or USB keyboard and mouse
- Up to 4 users can access and control up to 1,000 computers and network devices
- Fixed port configurations and plug-in expansion ensures low system cost and makes the system easy to expand and maintain
- Switching can be done from hot-key, OSD, or serial port
- Flash memory, advanced OSD, security, serial touchscreen, and many other features
Typical Application
Overview
UltraMatrix 'E' series is an advanced kvm matrix switch available at a competitive and affordable price. While the switch is available in a model compatible with any operating system, a more economical version supporting only PCs can be purchased. This powerful switch allows up to four users to connect to 1000 servers or computers by using cascading switches. Units easily connect together with bus cables to make a seamless and truly scalable kvm matrix solution. The advanced distributed design of the UltraMatrix uses networking communication technology to reduce cost, eliminate single points of failure, and increase reliability.
UltraMatrix E-Series is produced in several sizes:
- 1 user and 8 CPUs
- 1 user and 16 CPUs
- 2 users and 4 CPUs
- 2 users and 8 CPUs
- 2 users and 16 CPUs
- 4 users and 8 CPUs
- 4 users and 16 CPUs
Any computer can be connected to a PS/2, USB, or serial interface. The unit will support a maximum video resolution of 1600 x 1200. kvm stations and computer access can be easily configured using an OSD, with control for peripheral serial devices supported. When accessing a serial device the on-screen display becomes a color VT220 terminal. Additional features include support for multiple languages and a security system with login and computer groups preventing unauthorized access and configuration. Serial touchscreen support is available on the multi-platform models.
Specifications ▼
| Dimensions (W x D x H) | 4/8-port: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) 16-port: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm) (2U) |
| Weight | 4/8-port: 4 lbs (1.8 kgs) 16-port: 8 lbs (3.6 kgs) |
| Power | 90-240 VAC 50-60Hz 4/8-port: 15W 16-port: 30W |
| Resolution | VGA: 1920 x 1200 |
| Distance | 25 feet (7.6m) |
| Connectors | Power: IEC 320 standard receptacle CPU/KVM : DB25 female Expansion: DB15 male/female RS232 serial: RJ 6 conductor |
| Controls | Select computer by OSD, hot-key, serial port Unit Power: Green LED CPU power: Green LED per port CPU select: Red LED per port |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
| UltraMatrix 4xE Series - PC-Platform, Multi-User kvm Switches: Chainable to 1000 CPUs, 2U, C-Chassis | |
|---|---|
| EP4-4X4U | 4 kvms to 4 CPUs, No Bus Exp Cards |
| EP4-4X8U | 4 kvms to 8 CPUs, No Bus Exp Cards |
| EP4-4X16U | 4 kvms to 16 CPUs, No Bus Exp Cards |
| EP4-1X16U/E2 | 1 kvm to 16 CPUs, w/2 Bus Exp Cards |
| UMC-EXP2 | E-Series: Bus Exp. Card, use 2 in 4xE |
| /E2 | 2 Expansion Cards Installed |
| UltraMatrix 4xE Series - Multi-Platform, Multi-User kvm Switch: Chainable to 1000 CPUs, 2U, C-Chassis | |
| EE4-4X4U | 4 kvms to 4 CPUs, No Bus Exp Cards |
| EE4-4X8U | 4 kvms to 8 CPUs, No Bus Exp Cards |
| EE4-4X16U | 4 kvms to 16 CPUs, No Bus Exp Cards |
| EE4-1X16U/E2 | 1 kvm to 16 CPUs, w/2 Bus Exp Cards |
| /E2 | 2 Expansion Cards Installed |
| UltraMatrix 2xE Series - PC-Platform, Multi-User kvm Switches: Chainable to 1000 CPUs | |
| EP2-2X4U | 2 kvms to 4 CPUs, 1U, B-Chassis |
| EP2-2X8U | 2 kvms to 8 CPUs, 1U, B-Chassis |
| EP2-2X16U | 2 kvms to 16 CPUs, 2U, C-Chassis |
| EP2-1X8U/E | 1 kvm to 8 CPUs, w/Bus Exp Card, 1U, B-Chassis |
| EP2-1X16U/E | 1 kvm to 16 CPUs, w/Bus Exp Card, 2U, C-Chassis |
| UMC-EXP2 | E-Series: Bus Exp. Card, use 2 in 4xE |
| /E | Expansion Card Installed |
| UltraMatrix 2xE Series - Multi-Platform, Multi-User kvm Switches: Chainable to 1000 CPUs | |
| EE2-2X4U | 2 kvms to 4 CPUs, 1U, B-Chassis |
| EE2-2X8U | 2 kvms to 8 CPUs, 1U, B-Chassis |
| EE2-2X16U | 2 kvms to 16 CPUs, 2U, C-Chassis |
| EE2-1X8U/E | 1 kvm to 8 CPUs, w/Bus Exp Card, 1U, B-Chassis |
| EE2-1X16U/E | 1 kvm to 16 CPUs, w/Bus Exp Card, 2U, C-Chassis |
| /E | Expansion Card Installed |
