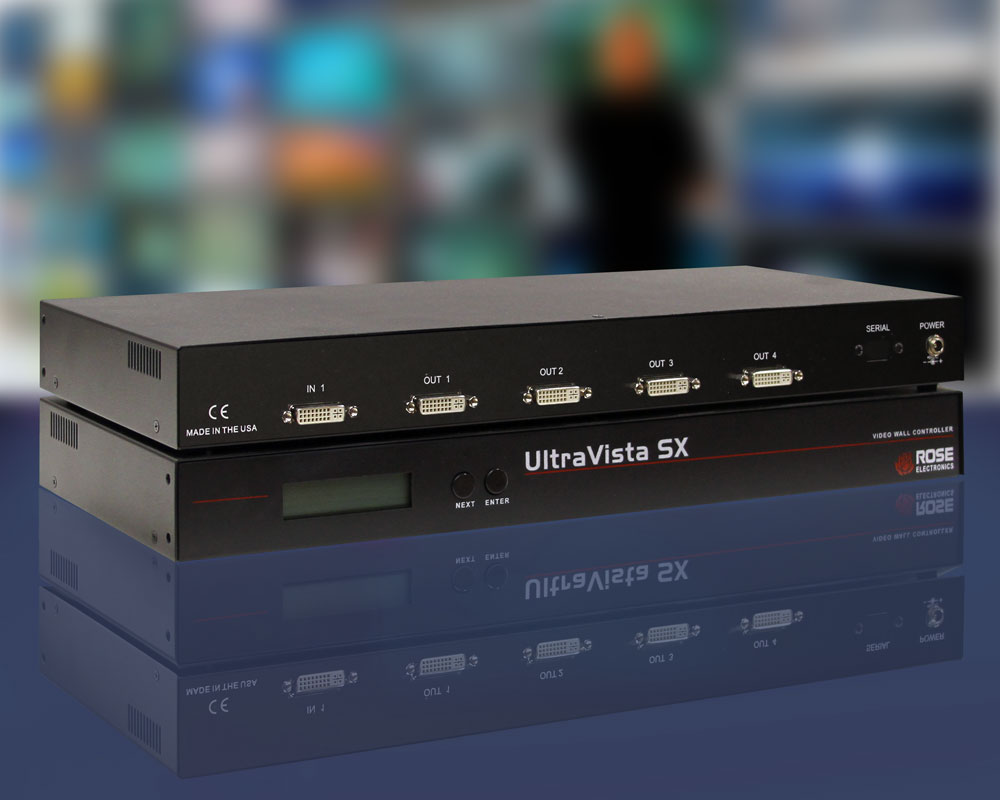

UltraVista SX
Video Wall Controller - 2 x 2
- Single-link DVI input video resolution up to 1920 x 1200
- Output monitors can be DVI or VGA
- EDID learning mode simplifies installation
- Front panel LCD simplifies setup and operation
- Compatible with all DVI video sources
- Plug and play features ensure smooth installation and operation
Typical Application
Overview
UltraVista SX combines simplicity with utility, making it an ideal product for displaying high definition images and video over a 2x2 video wall. The display is shown in real time with the image spread evenly over each of the four VGA or DVI screens at resolutions of up to 1920 x 1200. For VGA analog monitor connections, a DVI to VGA adapter must be used.
UltraVista SX has a simple plug-and-play installation.
Just connect a single-link DVI-D high-resolution video source to the DVI input connector and connect four DVI or VGA monitors to the DVI-I output connectors. Then download the DDC information using the front panel buttons and display from a PC, Apple, or from the display screen, and installation is complete. There is no software to load, no hardware to add, and no video cards to configure. UltraVista SX maintains the original resolution quality of the input image on all monitors, producing a crisp, clear image.
Specifications ▼
| Dimensions (W x D x H) | 17" x 7" x 1.75" (431 x 177 x 44.5 mm) |
| Weight | 8.8 lbs (4.0 kgs) |
| Power | 100-240 VAC 50-60Hz External adapter, +5V DC, 3A 15W |
| Resolution | DVI: 1920 x 1200 |
| Distance | Video: 25 feet (7.6m) |
| Connectors | Video in: DVI Video out: 4 DVI Power: Barrel jack Config: RS232 DB9 |
| Controls | Select and configuration: 2 push-buttons and 2x20 LCD |
| Environment | Operating temperature: 32°F–96°F (0°C–35°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–85%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| VWL-S122DV | Video Wall unit, 2x2 display |
