Video Splitter - VGA

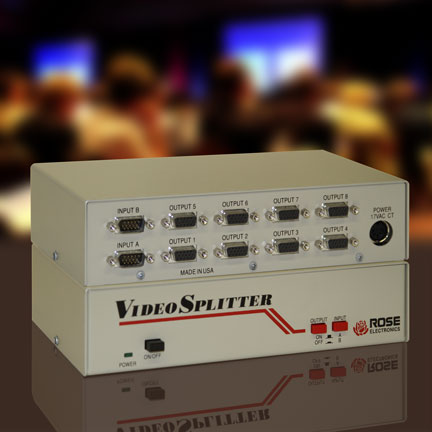

VGA/Audio Splitter - 1-2 In to 2-16 Out

  • Drives multiple monitors from either 1 or 2 CPUs
  • Video resolution up to 1920 x 1200
  • Monitors can be placed up to 50' (15m) away subject to resolution
  • Models available to drive 2, 4, 8, or 16 monitors
  • Blanking control and optional 2nd input switchable from front panel
  • Units can be cascaded to gain more outputs

Typical Application

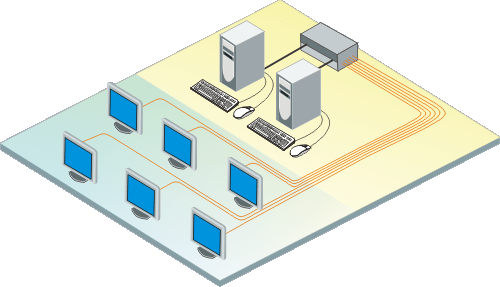

Video Splitter - VGA application

Overview

VideoSplitter is designed to take one or two VGA video sources and distribute the video to multiple monitors. The monitors can be located as far away as 250 feet using optional extended distance cables. VideoSplitter is perfect for any application requiring multiple monitor capabilities. For controlling or setting up a presentation, a blanking feature is available that will inhibit the video from displaying on all monitors except port one. This allows the presenter to organize and edit the video before it is distributed to all monitors.

VideoSplitter is available in several models:

  • 1 Video source to 2 monitors
  • 1 video source to 4 monitors
  • 1 video source to 8 monitors
  • 1 video source to 16 monitors
  • 2 video sources to 2 monitors
  • 2 video sources to 4 monitors
  • 2 video sources to 8 monitors

You can daisy-chain units together to drive additional monitors if needed. On the dual input models, a built-in A/B switch is an added feature. This allows switching between two different video sources to multiple video monitors. The VideoSplitter is rack mountable with optional 19", 23", and 24" rack mount kits.

Specifications

Dimensions
(W x D x H)
2/4/8-port: 8.85" x 4.9" x 2.1" (225 x 124 x 53 mm)
16-port: 13.25" x 4.9" x 5.25" (337 x 124 x 133 mm)
Weight 2/4/8-port: 3 lbs (1.4 kgs)
16-port: 6.5 lbs (3.0 kgs)
Power 90-240 VAC 50-60Hz
External adapter, 17 VAC CT, 700 ma
2/4/8-port: 5W
16-port: 10W
Resolution VGA: 2048 x 1536
Distance Video: 25 feet (7.6m)
Connectors Video in: HD15 Male
Video out: HD15 Female
Power: DIN5
Controls Unit power: Green LED
Output blanking: Push-button
Input select: Push-button (option)
Cable equalization: Dip Switch (inside unit)
Environment Operating temperature: 32°F–131°F (0°C–55°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Video Splitter - VGA: 1 In to Multiple Out, SV-Chassis
VSP-1X2VB 1 In to 2 Out, HD15M In - HD15F Out
VSP-1X4VB 1 In to 4 Out, HD15M In - HD15F Out
VSP-1X8VB 1 In to 8 Out, HD15M In - HD15F Out
VSP-1X16V 1 In to 8 Out, HD15M In - HD15F Out
Video Splitter - VGA: 2 In to Multiple Out, SV-Chassis
VSP-2X2VB 2 In to 2 Out, HD15M In - HD15F Out
VSP-2X4VB 2 In to 4 Out, HD15M In - HD15F Out
VSP-2X8VB 2 In to 8 Out, HD15M In - HD15F Out
VSP-D1X2VB Dual Set in single chassis - 1x2 units in 1 SV chassis
VSP-D1X4VB Dual Set in single chassis - 1x4 units in 1 SV chassis
VSP-Q1X2VB Quad Set in single chassis - 1x2 units in 1 SVX chassis
VSP-Q1X4VB Quad Set in single chassis - 1x4 units in 1 SVX chassis
VSP-2V2A/SW 1 to 2 Videos (VGA-HD15) and 1 to 2 Audio, Audio up to 20 ft
VSP-2V4A/SW 1 to 4 Videos (VGA-HD15) and 1 to 2 Audio, Audio up to 20 ft
/SW denotes a power adapter for different voltages
