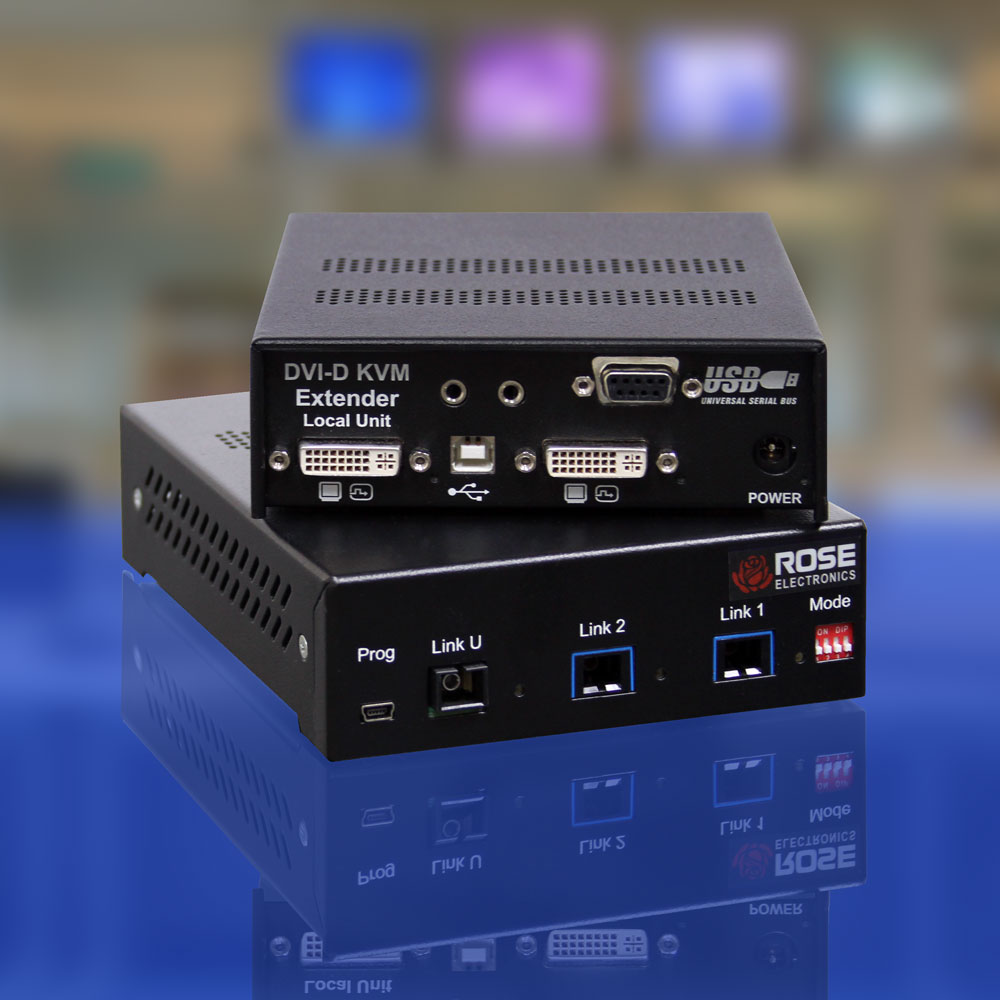

CrystalView DVI Plus

Fiber Extender - Dual-link DVI/USB 2.0

  • Extends DVI video keyboard/mouse up to 1,300' (400m) over multi-mode cable
  • Uncompressed single-link DVI to 1920 x 1200 and dual-link DVI to 2560 x 2048
  • Supports USB keyboard/mouse
  • Optional USB 2.0, serial, stereo speakers, and microphone

Typical Application

CrystalView DVI Plus application

Overview

CrystalView DVI Plus provides extension of the highest quality video available on the market. The uncompressed video format avoids possible video corruption and frame drops normally associated with compressed video, providing smooth high definition video up to 1,300 feet over 50/125µ multi-mode fiber cabling.

CrystalView DVI Plus extender is produced in two models:

  • The single-link DVI model supports resolutions of up to 1920 x 1200 @ 60Hz
  • The dual-link DVI model works on two video cards in a CPU and supports resolutions of up to 2560 x 2048 @ 60Hz

Both models support only multi-mode fiber cables. USB 2.0 transparent is optional and supports any kind of USB peripheral, including scanners, printers, etc. CrystalView DVI Plus allows the connection of two monitors with one KVM station. Stereo audio is also optionally available.

Specifications

Dimensions (W x D x H) 5.2" x 7.1" x 1.7" (133 x 180 x 43 mm)
Weight 2.6 lbs (1.2 kgs)
Power 90-240 VAC 50-60Hz
External adapter, +5V DC, 2A
5W
Distance 1920 x 1200 (single link): 1000' (300m)
2560 x 2048 (dual-link): 1000' (300m)
Connectors Transmitter:
DVI video: DVI female
USB keyboard/mouse: USB Type B
PS/2 keyboard/mouse: Two PS/2 mini-din6F
Audio: Two 3.5mm stereo jacks
Serial: DB9F
Link: RJ45 jack, one per video port
Receiver:
DVI video: DVI female
USB keyboard/mouse: Two USB type A jack
PS/2 keyboard/mouse: Two PS/2 mini-din6F
Audio: Two 3.5mm stereo jacks
Serial: DB9M
Link: RJ45 jack, one per video port
Power: Barrel jack
Controls Unit power: Red LED
Video status: Green LED per port
Environment Operating temperature: 41°F–113°F (5°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 0%–80%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-1DFMT1SL Single Link, Digital Fiber KVM Extender, Single-head Video, DVI, USB 2.0
CRK-1DFMT2SL Single Link, Digital Fiber KVM Extender, Dual-head Video, DVI, USB 2.0
CRK-1DFMT1DL Dual-link, Digital Fiber KVM Extender, Single-head Video, DVI, USB 2.0
CRK-1DFMH1SL Single Link, Digital Fiber KVM Extender, Single-head Video, DVI, HID
CRK-1DFMH2SL Single Link, Digital Fiber KVM Extender, Dual-head Video, DVI, HID
CRK-1DFMH1DL Dual-link, Digital Fiber KVM Extender, Single-head Video, DVI, HID
/AUD Audio option for kit
